40′ FT Standard Prefab Stainless Steel Logistic Shipping Container

Introduction of 40' ft Standard Prefab Stainless Steel Logistic Shipping Container
1) ISO/TC-104

668	-	Series 1 freight containers-Classification, external dimensions and ratings
6346	-	Coding, identification and marking for freight containers
1161	-	Specification of corner fittings for series 1 freight containers
1496/1	-	Specification and testing of series 1 freight containers. Part 1 : General cargo containers for general purposes
830	-	Freight containers-Terminology.
6359	-	Freight containers-Consolidated data plate

2) The International Union of Railway (UIC) code 592 OR.
3) The Customs Convention on the International Transport of Goods(TIR).
4) The International Convention for Safe Containers (CSC).
5) Transportation Cargo Containers and Unit Loads Quarantine Aspects and Procedures by Commonwealth of Australia Department of Health. (TCT)
6) Provide certificates from classification society (BV, ABS, GL, CCS, LR, KR).

Specifications of 40' ft Standard Prefab Stainless Steel Logistic Shipping Container
1 Dimension

	External Dimensions	Internal Dimensions
Length	12,192 (0, -10) mm	12,032 (0, -10) mm
Width	2,438 (0, -5) mm	2,352 (0, -5) mm
Height	2,896 (0, -5) mm	2,698 (0, -5) mm

2 Door Opening

Width .....	2,340 (0, -5)	mm
Height ......	2,585 (0, -5)	mm

3 Gooseneck Tunnel

Length .....	3,315	mm
Width .....	1,029 (+3, 0)	mm
Height ......	120 (0, -3)	mm

4 Inside Cubic Capacity
76.4cu.m 2,700 cu.ft
5 Rating

Maximum Gross Weight .	30,480 kg	67,200 lb
Maximum Payload	26,580 kg	58,600 lb
Tare Weight (±2%) ..	3,900 kg	8,600 lb

Advantages of 40' ft Standard Prefab Stainless Steel Logistic Shipping Container
1. ISO standard general dry cargo steel shipping container.
2. for sea, inland, and railway transportation.
3. convenient for loading, lifting, moving.

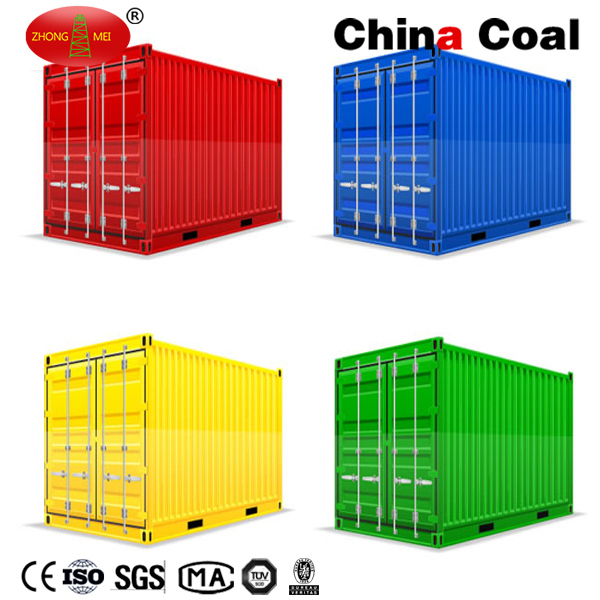

Pictures of 40' ft Standard Prefab Stainless Steel Logistic Shipping Container
