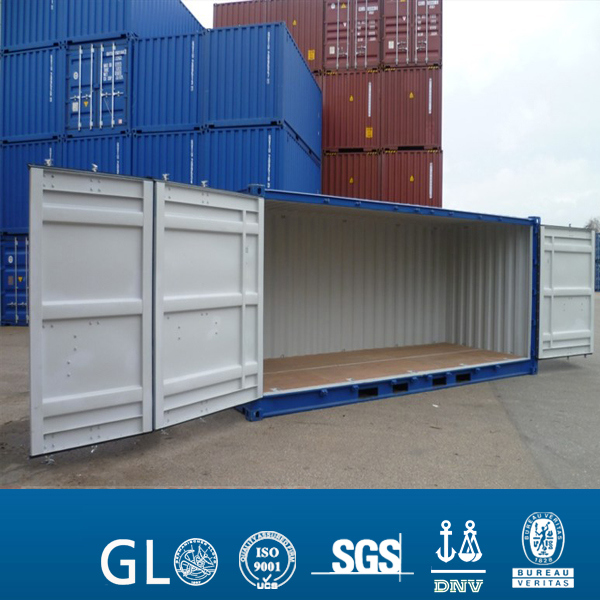

Lysoc001 20gp Corten Steel BV Side Opening Container

Detailed Product Description1. Side Opening Container,Standard double doors- Full 270 degree opening
1.Made by corten steel,timber flooring
2.20GP/HC, 40GP/HC can be available, CSC,BV ,GL,ABS,DNV,LR
3.ISO 9001 quality system
4.Water & light resistance,security box available on request


Workshop Display, High Mechanized And Automatic Machines









Professional Engineer

Product Description

The container has been designed and constructed for the transportation of general cargo on sea(above or under deck) and on land (road or rail) throughout the world, and suitable for the environmental conditions imposed by those modes of transport. All the material used in the construction are able to withstand extreme temperature ranging from -40°C(-40°F) to 70°C(158°F) without effect on container's strength and watertightness.

Guangzhou Fair

1,High sealing quality Gaps are fully welded

2,Good appearance with competitive price

3,Multifunction to meet customer demands

4,With strong astigmatic resistance.

5,With great air tightness and water-resistance.

6,design for your specific instruction

Type of Container	Interior dimensions	Door opening (MM)	Load Capacity	Max Pay Load	Container Weight	Max Gross Weight (KG)
	(MM)		(CBM)	(KG)	(KG)
20FT Dry Container
	L: 5, 898	W: 2, 340	33.2	28, 300	2, 180	24, 000
	W: 2, 352	H: 2, 280
	H: 2, 393
40FT Dry Container
	L: 12, 032	W: 2, 340	67.7	26, 830	3, 650	30, 480
	W: 2, 532	H: 2, 280
	H: 2, 393
40FT High-Cube Dry Container
	L: 12, 032	W: 2, 340	76.4	26, 650	3, 830	30, 480
	W: 2, 532	H: 2, 585
	H: 2, 698
45FT Dry Container
	L: 13, 556	W: 2, 340	85.6	25, 780	4, 700	30, 480
	W: 2, 352	H: 2, 585
	H: 2, 698
20FT Reefer Container
	L: 5, 455	W: 2, 290	26.4	21.04	2, 960	24, 000
	W: 2, 290	H: 2, 227
	H: 2, 262
40FT Reefer Container
	L: 11, 533	W: 2, 286	58.5	26, 240	4, 240	30, 480
	W: 2, 286	H: 2, 182
	H: 2, 216
40FT High-Cube Reefer Container
	L: 11, 554	W: 2, 286	66.1	26, 080	4, 400	30, 480
	W: 2, 286	H: 2, 440
	H: 2, 505
20FT OpenTop Container
	L: 5, 900	W: 2, 340	32.6	28, 360	2.2	30, 480
	W: 2, 352	H: 2, 280
	H: 2, 350
40FT OpenTop Container
	L: 12, 180	W: 2, 335	66.7	26, 230	4, 160	30, 480
	W: 2, 230	H: 2, 285
	H: 2, 321~
20FT Flat Rack Container
	L: 5, 542		25	27, 760	2, 650	30, 480
	W: 2, 018
