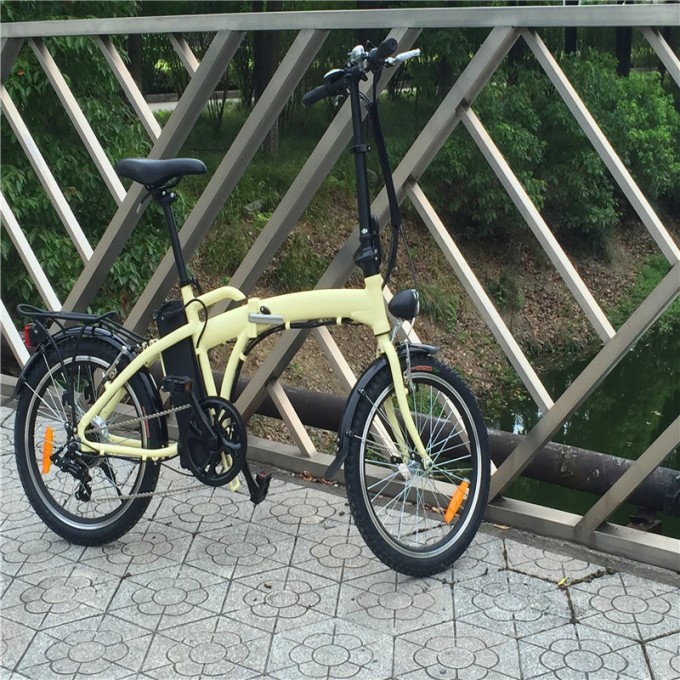

2016 New Design 20′′ Folding Electric Bike

2016 new design 20'' folding electric bike

Product Description

RSEB-103		20inch 36V10Ah Lithium Battery Folding Electric Bicycle
Item	Main Parts	Description
Electric parts	Battery	36V 10Ah Lithium Battery
	Battery Box	Alumiunm & Plastic
	Motor	36V 250W
	Charger	UL/CE listed Smart Charger, Cuting off when fully charging 4-6 hours
	Controller&sesor	36V 15Ah, 1:1 PAS
	Display	LCD
	Throttle	Optional
	Front&rear light	Front light, Rear Light
frame parts	frame	Al-alloy 6061
	Paint and Stick	White, red, black, silver......…
	Fork	Suspension(steel optional)
	Headset
	Handle bar	Al-alloy,Silver white
	Stem	Al-alloy,180×110,Outter size 25.4,with safety line
	Grip	Rubber
	Saddle post	Steel
	Saddle	Black
	Rear rack	6061 Al-alloy
	Bracket cup	Screw length of two ends 10mm
	Kick stand	Single
Brake parts	Brake lever	Al-alloy with cutting off electric function
	Braker	Front V-Brake, Rear Band-Brake
	Braker seat
Wheel parts	Rims	20"×1.95, double layer
	Spokes	13G×256(18pcs), 13gx 254(18pcs), Stainless steel
	Front hub
	Rear Hub	Motor
	Tires	20″×1.95
	Mudguard	aluminum & plastic
Drive parts	Shift lever	Shimano 7-Speed twist
	Rear derailleur	Outter 7-Speed
	Rear freewheel	Refer to Rear hub
	Chain	1/2"×3/32" X 128L section,anti-rust
	Chain Cover
	Crank	Al-alloy
	Pedals	Wellgo
Performance	Speed	25 KPH
	Max Loading	100kg
	Range	35KM by Throttle, 70km more by PAS
	Net Weight	20KG
	Gross Weight	25KG
Others	Paper cartons	7 layer, corrugated paper box, one ebike one carton
	Manual	English Default (We can print other languages after customer's sample)
	Scerw,cable…

Package & Shipping

Packaging material: PE bag+foam+carton, to keep products anti-shock.

Shipping by sea, we can cooperate with yourfreight forwarder, or we can arrange shipping by our freight forwarder. We can inquire the shipping cost for you when your destination port is decided.


Our Service

1.If you order the full container, we can provide these service.

- 1% free spare parts as our service.

- Your logo design is free.
- We have a discount.

2.OEM service over 10 years

3.What can be customized?
- Rim and Typ
- Brake Lever and Derailleur Lever
- Throttle Style
- Hydraulic brake or Disc brake
- Grip, Mudguard, Carriage
- Battery Capacity
- Logo design........

Company Information



Why Choose Us?

1. Good knowledge and rich experience on different market can meet special requirements

2. Rich experience on manufacture field with 8year's export business of electric bicycles.

3. Strong professional technical team ensures to produce the high,stable quality electric bicycle.

4. Special cost control system ensure to provide the most favorable price.

5. All bikes meet or exceed EN15194 - the Euro standard that ensures the bike is fit for purpose and complies with the European peddles legal requirements.

6. EN15194 is the official standard for electric bicycles in Europe; all bicycles already have been tested and comply with this standard.

FAQ

1. Q: can I place sample orders?
A: yes, we accept sample orders for fresh clients, but since we are factory, so would require an extra sample cost depends on products you are choosing.

2. Q: what's the delivery time?
A: usually we can make a delivery within 4 weeks after get your deposit, if you don't have special requests.

3. Q: what's your payment term?
A: As to company rule, we can only accept TT, but if invoice value is more than US$30,000, we can accept L/C at sight.

4. Q: what's your warranty term?
A: we offer one year warranty for motors, batteries, chargers, other wearing parts offer half year, details pls. enquiry us.

5. Q: can I mix different models in one container?
A: yes, but delivery time would be a little longer.

6. Q: do you have products in stock?
A: no, we produce according to orders, some common parts we have some stock to ensure delivery time.

7. Q: how does your factory control the quality?
A: we keep quality is priority. We have QC people from parts come in to the end of production. Before shipping, each product would be fully tested and road testing (e-bikes, e vehicles), till perfectly packing.

8. Q: can I make logo on our products?
A: yes, depends on qty we will have an extra cost.
