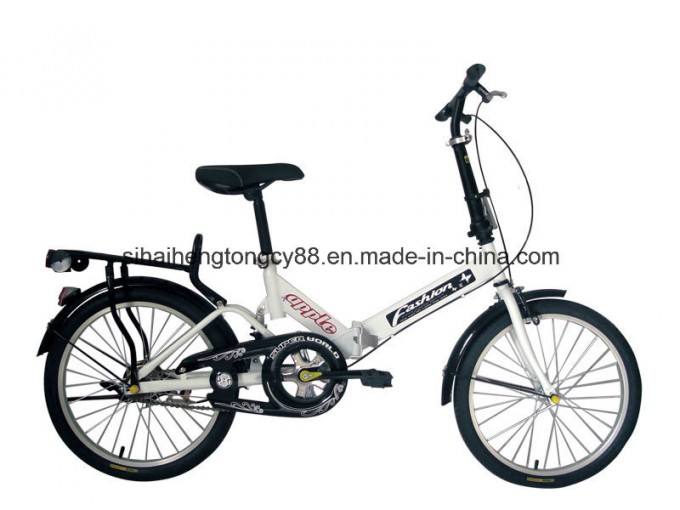

20inch Folding Bike with 1 Speed (SH-FD059)

20inch Folding Bike with 1 Speed (SH-FD059)
WELCOME TO SIHAIHENGTONG BIKE FACTORY
WELCOME TO BOOK A TRIAL ORDER WITH US
PLEASE FEEL FREE TO ConTACT WITH ME!

ConTACT DETAILS
WENDY
MOBILE: 0086 15522999211

Model No.: 20" /24fresh folding bike
T/T for FOB tianjin port

Specification:
1. frame and fork
Steel folding frame and fork with painting, T: 1.2mm

2. Handle bar sets
Steel handle bar and alloy folding stem CP

3. Wheel sets
Alloy 20/24*1.95 rim and 20/24*1.95 black tire
14G* 36H hub CP
14G*36H spoke with steel nipple

4. Drive System
Steel CP crank&chain wheel
With steel chain cover with painting
Brown chain as fact
Rear 1speed/ 6speed, shimano or Chinese brand

5. Brake sets
Front caliper brake and rear band brake

WELCOME TO OUR FACTORY~
WE CAN SUPPLY YOU PRODUCTS WITH GOOD QUALITY AND BEST PRICE~

MODEL : 20 '' FOLDING BICYCLE
PART NAME	MATERIAL	DEscriptION	COLOR
frame	steel	24/20 FOLDING BIKE, STEEL	painting
FORK	steel	STEEL WITH PAINTING	painting
DECAL		TO ORDER
HANDLE BAR	ALLOY	ø22.2*ø25.4*2.0T*560mm H=80mm	itself
HANDLE STEM	ALLOY	goose type handle stem	itself
BASKET	steel	same as photo 5.5 stay	white
GRIP		L=75mm R=110mm single through	BK
SHIFTER		6speed/1speed	BK
F:DERAILEUR	steel	6speed/1speed	CP
SHIFTING CABLE		2P	BK
FRONT BRAKE	alloy	front caliper brake	itself
REAR BRAKE	alloy	rear band brake	itself
BRAKE LEVER		3&half finger type semi-alloy brake lever , with alloy adjustable screw	BK/SIL
BRAKE CABLE		2P	BK
BBSETS	steel	D type ,inside spad eagle ;5pcs,with 1/4*9 bearing 2pcs	ED
AXLE	steel	3T built-in thread Tighten the Flange screw	ED
CHAINWHEEL	steel	1/2*3/32*36T*152L,steel crank 9/16 thread for pedal's installation	ED
CHAIN	steel	1/2*3/32*108L	Brown
CHAINCOVER		36T with chain guard
PEDAL	steel	Pedal for folding bike with ball , 9/16 thread for installation ,with "L R "marking	BK
FRONT HUB	steel	3/8*14G*36H*100*140L, safety hook +Flange nut	CP
REAR HUB	steel	3/8*14G*36H*135*175L,,Flange nut , monofilament L=R-2	CP
SPOKES	steel	45# steel ,14G F/R=(18/54)steel nipple 12mm(CP)	UCP
RIM	steel	24/20*1.75*36H*14G alloy rim & oxidation,w/o chinese LOGO	oxidation
GASKET	steel	24/20*20mm*0.8T PVC	PVC
TIRE		24/20*1.75	BK
TUBE		24/20*1.75 A/V butyl	BK
FREEWHEEL	steel	1s free wheel	brown
SADDLE		as photo, spring :ø5.8 girder :ø6.8 clip : 2.2T	brown
SEAT POST	steel	steel ø25.4*250L*1.2T with safety line	CP
SEAT POST SCREW	steel	M8*55mm with quick release	CP
CARRIER	steel	as the sample , with spring clip	ED
MUDGUARD&stay	steel	52*0.45T Stay:F/R:220	ED
kickstand	steel	24/20'' kickstand	ED
ASSEMBLY		SKD 95%
