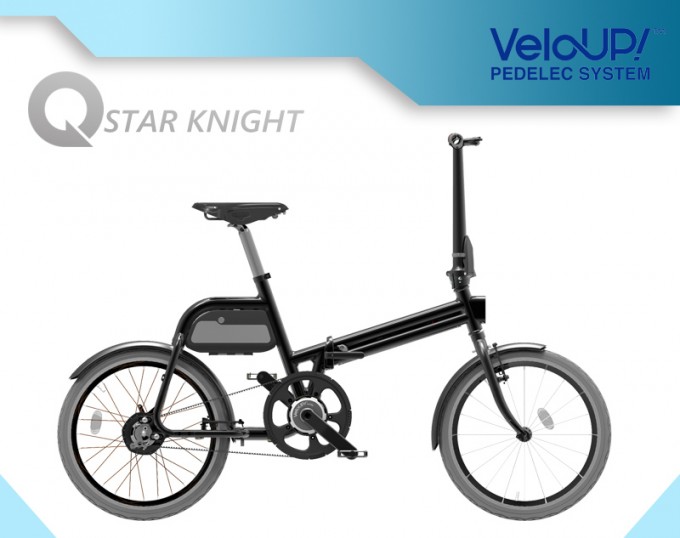

20-Inch 36V 250W Electric Foldable Bike

TSINOVA--TS01F

Smart E-bike Opens aNew Era of Urban Mobility
Life is Easy


VeloUP! ™Smart Drive System--Adjustable Power for Intuitive Man-bike Interaction

The VeloUP! ™smart drive system, empowered by automotive hybrid technology, is capable of intelligent understanding of rider intentions and automatic observation of road conditions. The automobile-grade Freescale processor calculates riding and bike data from torque, pedaling frequence and speed sensors in the matter of milliseconds, delivers fast data transmission through the automotive controller Area Network (CAN) bus technology, and regulates power output from the lithium-ion battery and high-performance electric motor. The smart drive system provides you with an enjoyable hassle-free riding experience in all environments, be it flat, uphill or against the wind.


Ultra-long Battery Range with Quick and Convenient Charging

Panasonic lithium-ion battary and top-notch battery management system The Panasonic lithium-ion battery,has astrong power output. With two hours' charge, it provides arange as long as 50-70km. The battery is detachable for charging and has aweight of only 1kg. The battery is matched with abattery management system jointly developed with Panasonic which achieves efficient and balanced electric discharge and provides comphensive safety protection including high temperature warning, overcurrent protection, and pvention of over-charge and over-discharge.



Foldable and Portable

only 3steps, 10 seconds to complete the folding,the vehicle weighs 15kg, regardless of work or leisure, car are inseparable, easy to place the car trunk.

Timing Belt transmissionPower transmission based on avehicle-level timing belt ensures asmooth flow of power, durability, cleanness and quietness.
Trend-setting Design and Outstanding ComfortLightweight dual-trapezoid frame with asimple bauhaus style Smart e-bike has adistinctive bauhaus style, delivering powerful functions in asimple and elegant structure. In departure from the traditional triangular structure, the e-bike features aunique dual-trapezoid frame which transmits vibration to the rear to avoid direct impact on the head tube and the saddle and provide enhanced comfort. Meanwhile, the body lines are sofer and smoother and more visually pleasing and add to rider comfort.
Real-time Location Positioning
The E-bike can be positioned in real time via the tailored APP, with location information remaining available for as long as 72 hours even when the E-bike is power off. There is no need to worry about theft.
Night Vision System
The high-intensity deep-penetrating LED lights effectively ensure safty for riding in the night.
APP
Connects with the intelligent e-bike via Bluetooth. It allows the rider to make efficient e-bike control, record and share riding experience and achieve intelligent protection and against theft. The great fun of riding is just at the finger tips of the rider.
More Choices, More Fun

TSINOVA provides 4assisted drive modes which can be adjusted via the APP to give the rider afree choice of power and speed.

Comphensive E-bike Information Ensures Smooth Riding

The rider can read current battery power, riding time, ridden distance and other information from his or her mobile phone. Such comphensive e-bike information helps the rider to make better riding control.

Technical Specifications

E-Bike Component Specifications
frame	Aluminum 6061 TT:562mm ST:420mm
Front Fork	100mm steel fork
Head Parts	34mm outside the wrist group
Brake	Veloup Vbrake
Rim	20-inch
Cranks	170mm square hole
Transmission	Patented Tsinova transmission system
Seat Tube (post)	31.6*350mm*2.5t
Handlebar Tape	22.2xL-R: 125mm
Battery Technical Specifications
Battery Type	Lithium Battery
Capacity	5.8Ah
Nominal Voltage	36V
E-Bike Technical Specifications
Dimensions	1600*540*1000mm
Wheelbase	1100mm
Weight	15kg (without battery,pedal and kickstand)
Peak Speed	25km/h
Battery Range	50km
Load Capacity	140kg
Electric Motor Technical Specifications
Electric Motor Type	PMSM permanent magnetic syschronous motor
Rated Continuous Output Power	250 W
Rated Rotational Speed	250 r/min
Rated Voltage	36 V
Control Technology Technical Specifications
Under-voltage Protection Value	32 V
Over-current Protection Value	10A
