Akm Motor 50-70km Distance of Electric Bike

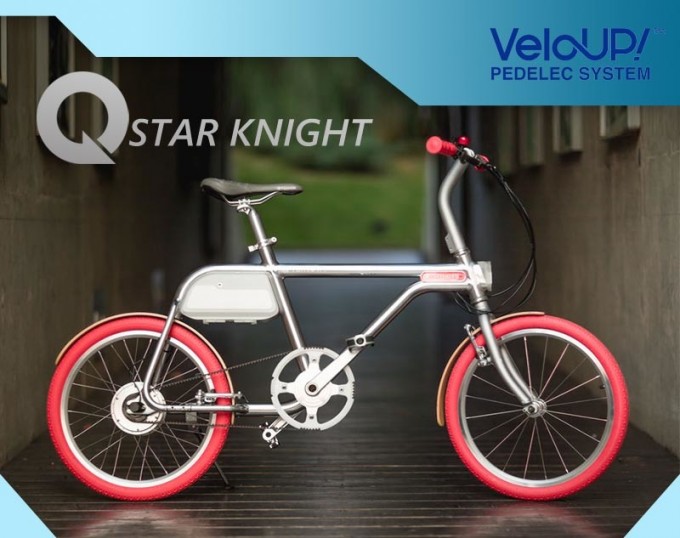

TSINOVA--TS01

Smart E-bike Opens aNew Era of Urban Mobility
Life is Easy

More colors: Matte White, Silver, Brillo Black, Matte Black, Bronze, Green, Dark blue




VeloUP! ™Smart Drive System--Adjustable Power for Intuitive Man-bike Interaction
The VeloUP! ™smart drive system, empowered by automotive hybrid technology, is capable of intelligent understanding of rider intentions and automatic observation of road conditions. The automobile-grade Freescale processor calculates riding and bike data from torque, pedaling frequence and speed sensors in the matter of milliseconds, delivers fast data transmission through the automotive controller Area Network (CAN) bus technology, and regulates power output from the lithium-ion battery and high-performance electric motor. The smart drive system provides you with an enjoyable hassle-free riding experience in all environments, be it flat, uphill or against the wind.




Ultra-long Battery Range with Quick and Convenient Charging
Panasonic lithium-ion battary and top-notch battery management system The Panasonic lithium-ion battery, of the same class as tesla battery, has astrong power output. With two hours' charge, it provides arange as long as 50-70km. The battery is detachable for charging and has aweight of only 1kg. The battery is matched with abattery management system jointly developed with Panasonic which achieves efficient and balanced electric discharge and provides comphensive safety protection including high temperature warning, overcurrent protection, and pvention of over-charge and over-discharge.

Timing Belt transmission
Power transmission based on avehicle-level timing belt ensures asmooth flow of power, durability, cleanness and quietness.
Trend-setting Design and Outstanding Comfort
Lightweight dual-trapezoid frame with asimple bauhaus style Smart e-bike has adistinctive bauhaus style, delivering powerful functions in asimple and elegant structure. In departure from the traditional triangular structure, the e-bike features aunique dual-trapezoid frame which transmits vibration to the rear to avoid direct impact on the head tube and the saddle and provide enhanced comfort. Meanwhile, the body lines are sofer and smoother and more visually pleasing and add to rider comfort.
Real-time Location Positioning
The E-bike can be positioned in real time via the tailored APP, with location information remaining available for as long as 72 hours even when the E-bike is power off. There is no need to worry about theft.


Night Vision System
The high-intensity deep-penetrating LED lights effectively ensure safty for riding in the night.


APP
Connects with the intelligent e-bike via Bluetooth. It allows the rider to make efficient e-bike control, record and share riding experience and achieve intelligent protection and against theft. The great fun of riding is just at the finger tips of the rider.
More Choices, More Fun
TSINOVA provides 4assisted drive modes which can be adjusted via the APP to give the rider afree choice of power and speed.
Comphensive E-bike Information Ensures Smooth Riding
The rider can read current battery power, riding time, ridden distance and other information from his or her mobile phone. Such comphensive e-bike information helps the rider to make better riding control.
Technical Specifications

E-Bike Component Specifications
frame	Patented Tsinova 20-inch frame
Front fork	Patented Tsinova front fork
Head parts	28.6X34X30 H30mm
Brake	Patented Tsinova V-brake arm and handle set
Rim	406mm
Cranks	Patented Tsinova cranks
Transmission	Patented Tsinova transmission system
Stem	Patented Tsinova stem
Seat tube (post)	33.9X350X2.4mm
Handlebar tape	Sponge bar tape 21X31X120mm

E-Bike Technical Specifications
E-Bike dimensions	1550x500X950mm
Wheelbase	1060mm
E-Bike weight	14kg
Peak speed	25km/h
Battery range	50km-70km (depending on road conditions)
Load capacity	140kg

Battery Technical Specifications
Battery type	Panasonic lithium-ion battery
Capacity	5.8Ah
Nominal voltage	36V

Electric Motor Technical Specifications
Electric motor type	Brushless direct current (BLDC) motor
Rated continuous output power	180 W
Rated rotational speed	275.7 r/min
Rated voltage	37 V
Rated output torque	40 Nm

Control Technology Technical Specifications
Under-voltage protection value	30V
30V	36
