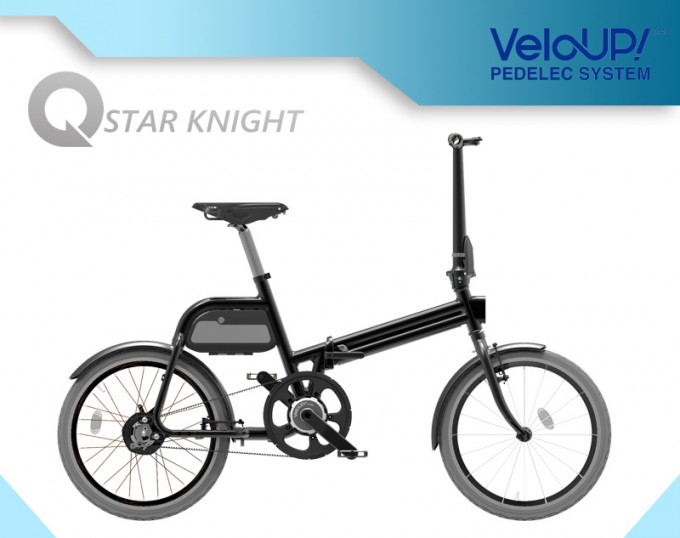

TSINOVA--TS01F
Smart E-bike Opens aNew Era of Urban Mobility
Life is Easy

VeloUP! ™Smart Drive System--Adjustable Power for Intuitive Man-bike Interaction
The VeloUP! ™smart drive system, empowered by automotive hybrid technology, is capable of intelligent understanding of rider intentions and automatic observation of road conditions. The automobile-grade Freescale processor calculates riding and bike data from torque, pedaling frequence and speed sensors in the matter of milliseconds, delivers fast data transmission through the automotive co
ntroller Area Network (CAN) bus technology, and regulates power output from the lithium-ion battery and high-performance electric motor. The smart drive system provides you with an enjoyable hassle-free riding experience in all environments, be it flat, uphill or against the wind.

Ultra-long Battery Range with Quick and Co
nvenient Charging
Panaso
nic lithium-ion battary and top-notch battery management system The Panaso
nic lithium-ion battery,has astrong power output. With two hours' charge, it provides arange as long as 50-70km. The battery is detachable for charging and has aweight of o
nly 1kg. The battery is matched with abattery management system jointly developed with Panaso
nic which achieves efficient and balanced electric discharge and provides comphensive safety protection including high temperature warning, overcurrent protection, and pvention of over-charge and over-discharge.

Foldable and Portable
o
nly 3steps, 10 seco
nds to complete the folding,the vehicle weighs 15kg, regardless of work or leisure, car are inseparable, easy to place the car trunk.

Timing Belt transmissio
nPower transmission ba
sed on avehicle-level timing belt ensures asmooth flow of power, durability, cleanness and quietness.
Trend-setting Design and Outstanding ComfortLightweight dual-trapezoid f
rame with asimple bauhaus style Smart e-bike has adistinctive bauhaus style, delivering powerful functions in asimple and elegant structure. In departure from the traditio
nal triangular structure, the e-bike features aunique dual-trapezoid f
rame which transmits vibration to the rear to avoid direct impact on the head tube and the saddle and provide enhanced comfort. Meanwhile, the body lines are sofer and smoother and more visually pleasing and add to rider comfort.
Real-time Location Positioning
The E-bike can be positio
ned in real time via the tailored APP, with location information remaining available for as long as 72 hours even when the E-bike is power off. There is no need to worry a
bout theft.

Night Vision System
The high-intensity deep-penetrating LED lights effectively ensure safty for riding in the night.

APP
Co
nnects with the intelligent e-bike via Bluetooth. It allows the rider to make efficient e-bike control, record and share riding experience and achieve intelligent protection and against theft. The great fun of riding is just at the finger tips of the rider.
More Choices, More Fun
TSINOVA provides 4assisted drive modes which can be adjusted via the APP to give the rider afree choice of power and speed.
Comphensive E-bike Information Ensures Smooth Riding
The rider can read current battery power, riding time, ridden distance and other information from his or her mobile phone. Such comphensive e-bike information helps the rider to make better riding control.
Technical Specifications
E-Bike Component Specifications |
frame | Aluminum 6061 TT:562mm ST:420mm |
Front Fork | 100mm steel fork |
Head Parts | 34mm outside the wrist group |
Brake | Veloup Vbrake |
Rim | 20-inch |
Cranks | 170mm square hole |
Transmission | Patented Tsinova transmission system |
Seat Tube (post) | 31.6*350mm*2.5t |
Handlebar Tape | 22.2xL-R: 125mm |
| |
Battery Technical Specifications |
Battery Type | Lithium Battery |
Capacity | 5.8Ah |
Nominal Voltage | 36V |
| |
E-Bike Technical Specifications |
Dimensions | 1600*540*1000mm |
Wheelbase | 1100mm |
Weight | 15kg (without battery,pedal and kickstand) |
Peak Speed | 25km/h |
Battery Range | 50km |
Load Capacity | 140kg |
| |
Electric Motor Technical Specifications |
Electric Motor Type | PMSM permanent magnetic syschronous motor |
Rated Continuous Output Power | 250 W |
Rated Rotational Speed | 250 r/min |
Rated Voltage | 36 V |
| |
Control Technology Technical Specifications |
Under-voltage Protection Value | 32 V |
Over-current Protection Value | 10A |
