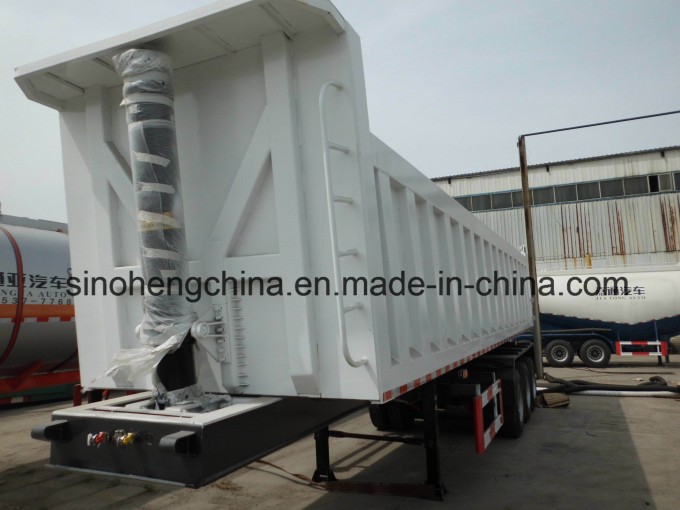

2017 New Good Quality Rear Dump Semi Trailer 3 Axles

2017 New Good Quality 60 Ton Rear Dump Trailer 3Axles
Our semitrailershas follow types:low bed semi trailer ,flatbed semi trailers ,container semi trailers,fueltanker semi trailers, bulk cement semi trailers, frence semi traier ,box semi trailer ,dumptraileretc .
The above semi trailers (from light loading semi trailers to heavy loading semi trailers ), all can customize them according to customer's special demands (required dimensions ,loading capacity etc ).Dump Trailer Technical Parameters :

Main Dimensions
Dimension	11280*2495*3970mm (outside) 10500*2300*1700mm (work space )size can be your choose
Tare weight	about 15600KGS
Total Volume(m3)	37 m³or less than 60tons
Side wall thickness(mm)	6mm Q235 steel
Bottom plate thickness(mm)	8mm /Q235 steel
Lifting system	Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder (FC196 MODEL use for 9m length trailer)
Chassis
Main Beams	Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel
Axle	3 axles, FUWA/HUAJING brand16tons per axles
Landing Gear	JOST (D200T)or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/ America type /
Leaf Spring	90(W)mm*13(Thickness)mm*10 Layer
Pneumatic Braking System	WABCO RE 6relay valve; Spring brake chamber; 2pieces of 45L air tanks.
Rim	9.00-22.5/8.00-20/8.5-20China Brand
Tire	12.00R22.5/315 80R22.5/11.00R20 /12.00R20Brand can be Optional
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1coat of anticorrosive prime, 2coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo or roro, the trailer size can be design according to your special requirement ,the tractor truck can be choose 6*4 model .

Packging&Shipping :Nude Packging, by bulk cargo ship or RO-RO ship ,according to customer's demands .
Payment Terms :30% TT before produce and 70% TT before shipment .
Warranty :12 months or 1year .
Our services :
Supply you our excellent services for p-sales and post sales ,at any time you need us ,at once we see your messages ,we will reply you at our first time .about the spare parts ,we have enough trailer spare parts to supply you ,it will be in time and with our factory price ,original parts .about the technical support ,we will support it to you forever at once you buy our products from here .
Semi Trailer Spare Parts :Our other semi trailers :

Semi Trailer Factory :

Welcome you visit our semi trailer factory !Good quality semi trailer ,excellent services and most competitive price looking forward to your coming !Pls send inquiry to us at any time ,we will reply you at our first time !Contact informations :
JINAN SINOHENG import AND EXPORT CO., LTD
Contact person :Estrella Wang
Tel :0086-531-67803861Mobile :0086-15820091752
