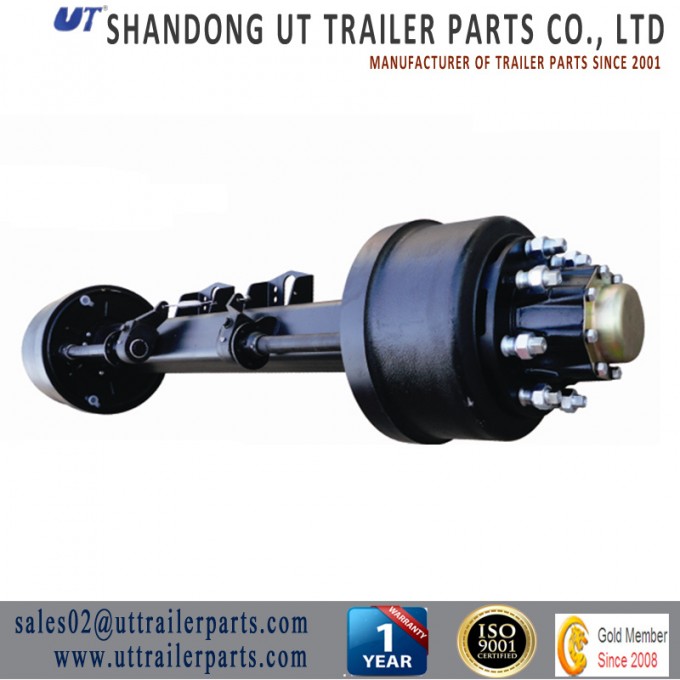

China American Style Axle/127mm Square Axle/13 Tons Semi Trailer Axle

1.Trailer axle Specifications:
Axle -American Type Inboard Series

Model	Capacity	Brake	Track	Distance of Spring	Distance of Brake Chamber	Axle tube	Wheel Fixing			Bearing	Total Length	Weight	Recommend wheel
	T	mm	mm	mm	mm	mm	Stud	P.C.D.	C.B.D.		mm	kg
UTA13RA03B2	13	420x180	1840	≥930	390	127 x19	10-M22x1.5 ISO	335	281	518445/10	2185	372	7.5-20
UTA13RA03B3	13	420x200	1840	≥930	370	127 x19	10-M22x1.5 ISO	335	281	518445/10	2185	385	7.5-20
UTA13RA02B2	13	420x180	1840	≥930	390	127 x19	10-M22x1.5 ISO	285.75	221	518445/10	2185	372	7.5-20
UTA13RA07B2	13	420x180	1840	≥930	390	127 x19	8-M20x1.5 JAP	285	221	518445/10	2185	372	7.5-20
UTA13SB03B2	13	420x180	1840	≥930	390	150	10-M22x1.5 ISO	335	281	518445/10	2185	372	7.5-20
UTA13SB03B3	13	420x200	1840	≥930	370	150	10-M22x1.5 ISO	335	281	518445/10	2185	385	7.5-20
UTA13SB02B2	13	420x180	1840	≥930	390	150	10-M22x1.5 ISO	285.75	221	518445/10	2185	372	7.5-20
UTA13SB07B2	13	420x180	1840	≥930	390	150	8-M20x1.5 JAP	285	221	518445/10	2185	372	7.5-20
UTA16RA03B4	16	420x220	1850	≥940	360	127 x25	10-M22x1.5 ISO	335	281	518445/220149	2205	430	20"
UTA16SB03B4	16	420x220	1850	≥940	360	150	10-M22x1.5 ISO	335	281	518445/220149	2205	430	20"

Axle -American Type Outboard Series

Model	Capacity	Brake	Track	Distance of Spring	Distance of Brake Chamber	Axle tube	Wheel Fixing			Bearing	Total Length	Weight	Recommend wheel
	T	mm	mm	mm	mm	mm	Stud	P.C.D.	C.B.D.		mm	kg
UTA13RA12B2	13	420x180	1840	≥930	390	127 x19	10-M22x1.5 ISO	335	281	518445/518445	2185	378	7.5-20
UTA13RA12B3	13	420x200	1840	≥930	370	127 x19	10-M22x1.5 ISO	335	281	518445/518445	2185	390	7.5-20
UTA13RA11B2	13	420x180	1840	≥930	390	127 x19	10-M22x1.5 ISO	285.75	221	518445/518445	2185	378	7.5-20
UTA13RA11B3	13	420x200	1840	≥930	370	127 x19	10-M22x1.5 ISO	285.75	221	518445/518445	2185	390	7.5-20
UTA13SB12B2	13	420x180	1840	≥930	390	150	10-M22x1.5 ISO	335	281	518445/518445	2185	378	7.5-20
UTA13SB12B3	13	420x200	1840	≥930	370	150	10-M22x1.5 ISO	335	281	518445/518445	2185	390	7.5-20
UTA13SB11B2	13	420x180	1840	≥930	390	150	10-M22x1.5 ISO	285.75	221	518445/518445	2185	378	7.5-20
UTA13SB11B3	13	420x220	1840	≥930	350	150	10-M22x1.5 ISO	285.75	221	518445/518445	2185	378	7.5-20
UTA13SB14B2	13	420x180	1840	≥930	390	150	8-M20x1.5 JAP	285	221	518445/518445	2185	378	7.5-20
UTA16SB12B4	16	420x220	1850	≥940	360	150	10-M22x1.5 ISO	335	281	518445/220149	2205	440	8.00-20

Axle -American Type 127 Square and 146 Round Series

Model	Capacity	Brake	Track	Distance of Spring	Distance of Brake Chamber	Axle tube	Wheel Fixing			Bearing	Total Length	Weight	Recommend wheel
	T	mm	mm	mm	mm	mm	Stud	P.C.D.	C.B.D.		mm	kg
UTA13SA12B3	13	420x200	1816	≥916	356	127	10-M22x1.5 ISO	335	281	518445/518445	2176	360	7.5-20
UTA13SA11B3	13	420x200	1816	≥916	356	127	10-M22x1.5 ISO	285.75	221	518445/518445	2176	360	7.5-20
UTA13SA14B3	13	420x200	1816	≥916	356	127	8-M20x1.5 JAP	285	221	518445/518445	2176	360	7.5-20
UTA13SA17B3	13	420x200	1816	≥916	356	127	10x7/8"-11 BSF	335	281	518445/518445	2176	360	7.5-20
UTA16SA12B4	16	420x220	1850	≥940	350	127	10-M22x1.5 ISO	335	281	518445/220149	2200	400	8.0-20
UTA13RB11B2	13	420x180	2121	-	680	146x 19	10-M22x1.5 ISO	285.75	221	518445/220149	2461	380	7.5-20

2.Trailer axle loading pictures:


3.Trailer axle factory:


4.Why choose us?
1.We have our own seven systems to ensure the delivery and quality, including material supply, production and management, quality control, packing, inventory, ex-factory inspection and transportation. After confirming the order we make detailed production plan including calculating accurate time of each system, workshop arrangement, workers arrangement etc and we follow the plan strictly
2. Our quality warranty period is 12 months after receiving the goods. During the warranty period we will supply free maintenance and replacement of damaged parts due to quality problem. Beyond warranty period, we only take the cost price for the damaged parts; We provide technical training and maintenance knowledge training for free.
