Detailed Description
We have seven types of axles
American type axles (Inboard type and outboard type )Germany type axles ( Wheel type and spider type )English type axles ( 8 holes, 10 holes / ISO BSF JAP )Lowbed axles / concave axlesAgricultural axles ( With brake, Without brake, Stub axles )Steering axles| Type | German Type Trailer Axle |
| Brand | UT |
| Process | Casting |
| Material | Steel |
| Capacity | 6.5-18T |
| Track length | 1840mm, 1850mm, 2040mm, 2050mm, as your requirement |
| Axle beam | Round type and square type, 127mm/150mm |

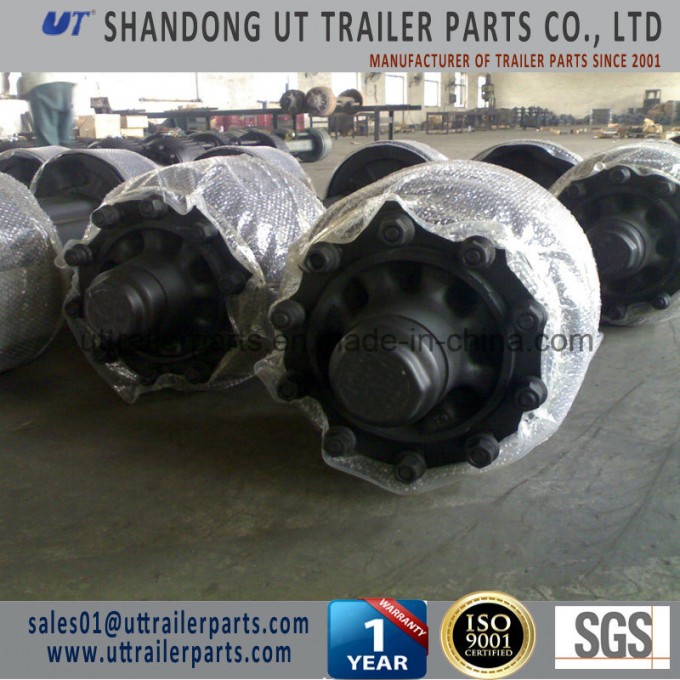

| Package | 1.use plastic film winding wheel hub
2.use metal plate fasten between axles 3.axles accessories in the wooden box or carbon boxes
Or according to customers' requests |
| Delivery | about 30 days after you place an order |
| MOQ | 1 Piece |
| Payment | L/C or 30% T/T ppaid, the balance against the copy of B/L |
| Certification | ISO9001:2008 |
| Warranty Period | 1 Year |
| Years in Field | Since 2001 |
| Product& Package | Customization |
| Trial order or Sample | Acception |
| Others | As your requests |
The following is our specification list of Germany type axles:
| Axle Type | Capacity | Brake | Bearing | Axle Beam | Track L1 | Distance of Spring L2 | Distance of Brake Chamber L3 | Wheel Fixing | Total Length L4 | Weight | Recommend Wheel |
| Stud | P.C.D | φA Pilot Hole Diameter |
| t | | | mm | mm | mm | mm | | mm | mm | mm | kg | |
| UTS6W11G | 6.5 | S420×120 | 33116 | ○120 | 2040 | 1300 | 415 | 10-M22×1.5 ISO | 335 | 281 | ≈2360 | ≈290 | 22.5×11.75, ET=0 |
| 33213 |
| UTS10W11G | 10 | S420×180 | 33118 | ○120 | 2040 | 1200 | 415 | 10-M22×1.5 ISO | 335 | 281 | ≈2382 | ≈371 | 22.5×11.75, ET=0 |
| 33213 |
| UTS10K11G | 10 | S420×180 | 33118 | ○127 | 2050 | 1200 | 655 | 10-M22×1.5 ISO | 335 | 281 | ≈2392 | ≈363 | 22.5×11.75, ET=0 |
| 33213 |
| UTS12F11G | 12 | S420×180 | 33118 | ○150 | 2050 | 1214 | 655 | 10-M22×1.5 ISO | 335 | 176 | ≈2392 | ≈383 | 22.5×11.75, ET=0 |
| 33213 |
| UTD12F11G | 12 | S420×180 | 33118 | ○150 | 1840 | 980 | 421 | 10-M22×1.5 ISO | 335 | 176 | ≈2158 | ≈373 | 7.50V-20 |
| 33213 |
| UTD12F11GT | 12 | S420×200 | 33118 | ○150 | 1840 | 980 | 350 | 10-M22×1.5 ISO | 335 | 281 | ≈2158 | ≈397 | 7.50V-20 |
| 33213 |
| UTD12F68G | 12 | S420×180 | 33118 | ○150 | 1847 | 980 | 392 | 6-M22×2 ISO Space 130-24 | ≈2150 | ≈420 | Trilex wheel 8.5-24 |
| 33213 |
| UTD12F68GT | 12 | S420×200 | 33118 | ○150 | 1847 | 980 | 375 | 6-M22×2 ISO Space 130-24 | ≈2150 | ≈433 | Trilex wheel 8.5-24 |
| 33213 |
| UTD14F11G | 14 | S420×200 | 33119 | ○150 | 1840 | 900 | 427 | 10-M22×1.5 ISO | 335 | 281 | ≈2188 | ≈417 | 8.00V-20 |
| 33215 |
| UTD14F68G | 14 | S420×200 | 33119 | ○150 | 1846 | 900 | 245 | 6-M22×2 ISO Space 147-24 | ≈2188 | ≈483 | Trilex wheel 8.5-24 |
| 33215 |
| UTD16F11G | 16 | S420×200 | 32222 | ○150 | 1840 | 900 | 243 | 10-M22×1.5 ISO | 335 | 281 | ≈2248 | ≈459 | 8.50V-20 |
| 32314 |
| UTD16F16GT | 16 | S420×220 | 32222 | ○150 | 2120 | 1150 | 640 | 10-M22×2 ISO | 335 | 281 | ≈2514 | ≈481 | 8.50V-20 |
| 32314 |
| UTD16F68G | 16 | S420×200 | 32222 | ○150 | 1840 | 900 | 243 | 6-M22×2 ISO Space 147-24 | ≈2248 | ≈538 | Trilex wheel 8.5-24 |
| 32314 |
| UTD18F11G | 18 | S420×220 | 32222 | ○150 | 1840 | 900 | 262 | 10-M22×1.5 ISO | 335 | 281 | ≈2244 | ≈469 | 8.50V-20 |
| 32314 |
| UTD18F16GT | 18 | S420×220 | 32222 | ○150 | 2120 | 1150 | 640 | 10-M24×2 ISO | 335 | 281 | ≈2510 | ≈489 | 8.50V-20 |
| 32314 |
| UTD18F68GT | 18 | S420×200 | 32222 | ○150 | 2150 | 1210 | 553 | 6-M22×2 ISO Space 147-24 | ≈2558 | ≈573 | Trilex wheel 8.5-24 |
