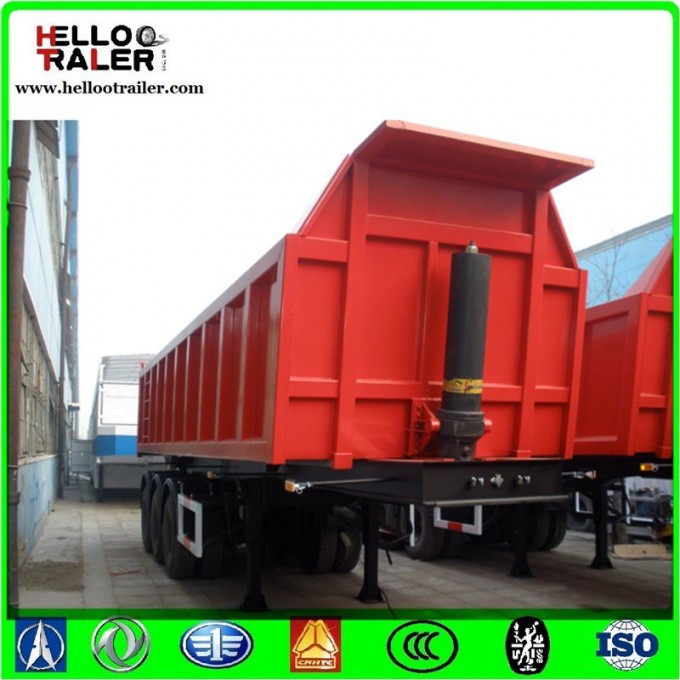

| Type | 3 axles 40T Utype rear tipper semi trailer |
| Total size | 10000x2500x3000mm |
| Weight | |
| Loading capacity kg | 40000 |
| Tare weight kg | 11000 |
| Specification | |
| Main Beam | Heavy duty and extra durability designed Ibeam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 20mm,width200mm;Middle Flange 10mm;bottom flange 20mm,width 200mm |
| Axle number | 3 |
| Axle weight load | 13Ton |
| Axle brand | FUWA |
| Suspension | Mechanical suspension America type |
| Leaf spring | Leaf spring 10pcs |
| Floor | Bottom plate 8mm .side wall 6mm |
| Tire type | 12R22.512pcs standard brand |
| Wheel rim | 9.0-22.5 |
| kingpin | 3.5'' bolt-in king pin |
| Landing gear | FUWA brand two-speed, manual operating ,heavy duty landing gear 28t |
| Cylinder | HYVA 214-7130 |
| Vehicular applications | Sand and pebble and mineral transport |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| Tools box | 2 |
| Electrical | |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Light | |
| Side marker lamp | LED type |
| Shipping terms | Naked |
| Deliverytime | 15 workdays after confirming order and receiving your deposit |
