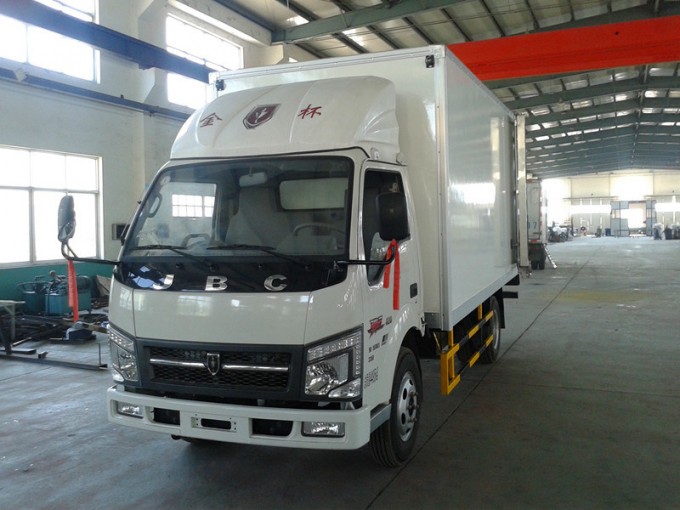

FRP Insulation Dry Truck Body

Refrigerated and Insulation Truck Body

*Italian's reliable craftsmanship and engineered in china

* Material: Resin adhensive, Fiberglass sheet, E-glass mat, PU panel, Stainless steel 304 and aluminium profile

*High production of the orders is welcomed too and CNC machine to ensure the accuracy of the measurement of the product to achieve a higher satisfaction from customers

Refrigerated and Insulated Truck Body Performance:
1. Outer/inner skin is FRP panel
2. Polyurethane insulated, PU foam density 42-45kg/m3
3.304 stainless steel locks, hinges, door frame, wrap angle
4. Aluminium alloy Edge Protector
5. EPDM rubber door seal
6. Thickness: 62mm, 82mm, 102mm or other special demands, body size as you demanded
7. Side door is optional
8. Light in weight: 40% lighter than metal body.
9. Better insulation: K value less than 0.3W/m2k...
10. High in strength and long life: 5 times longer than metal body.
11. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
12. Easy to be assembled and repaired at site.

* Products can be shipped in CBU (completely built up) and CKD (completely knock down) type.

* Temperature range, -18° C--+25° C, special request reach to -40° C

* The Thickness: 60mm, 80mm, 100mm. With the dimensions, the truck body can be the best

Refrigeration Effect. We can also change the thickness by your requirements. And the thickness range is from 25mm to 150mm
