Mobile hydraulic 8ton loading dock ramp for trucks with CE

Mobile hydraulic 8ton loading dock ramp for trucks with CE


Product introduction:
Mobile Hydraulic Loading Ramp is a special auxiliary equipment for loading and unloading of goods rapidly. Its height adjustment feature allows forklifts and other moving vehicles to enter into the truck directly and handle the goods. The dock ramp is mobile and controlled by manual hydraulic system, so only one person could operate it conveniently. It enables you to reduce the amount of labor and raise working efficiency.


Main features:
1)Hydraulic system:
With handle pump, screw the return valve clockwise. Move the handle stick, to lift the ramp slowly. When the return valve is screwed counterclockwise, the hydraulic oil will go back, and the ramp will fall down on its own weight.

2)Heavy-duty mobile chakra
Mobile wheels adopt solid tyres, need not inflatable, durable, cooperate to brake pad, guarantee the operation safety.

3)Spin adjustable a leg
Prevent forklift into vehicle gravity concentrate on vehicle tail produce car overturned. Can fully guarantee the operation safety. The different height to vehicles, suitable for height adjustment of vehicles

4)Manual hydraulic elevator system
Using artificial hydraulic power, don't must exteral electric power can be easily realized climbing height adjustment.

5)Fold-down transition board
The tail and transition plate and forklift folding hook can be convenient mobile cllimbing.


Parameter:

Model #	Load Capacity	Working height Range(m)	Maximum elevations	Overall Dimensions(m)	Operation Method
YDCQ-5	5	1.0~1.7	≤ 13°	11 × 2.08 × 1.3	Manually or electrical drive
YDCQ-6	6	1.0~1.7	≤ 13°	11 × 2.08 × 1.3	Manually or electri cal drive
YDCQ-8	8	1.0~1.7	≤ 13°	11 × 2.08 × 1.3	Manually or electri cal drive
YDCQ-10	10	1.0~1.7	≤ 13°	11 × 2.08 × 1.3	Manually or electri cal drive
YDCQ-12	12	1.0~1.7	≤ 13°	11 × 2.08 × 1.3	Manually or electri cal drive
YDCQ-15	15	1.0~1.7	≤ 13°	11 × 2.08 × 1.3	Manually or electri cal drive

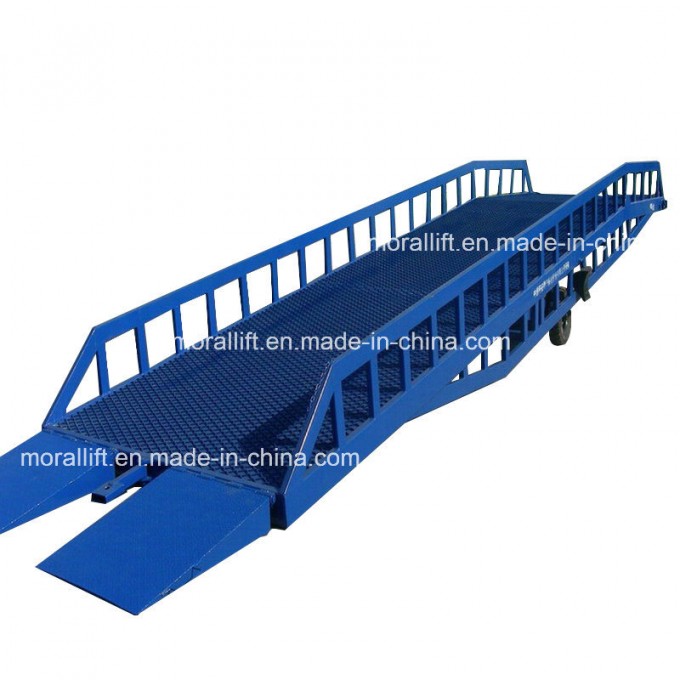

Detailed pics:






Specification:
1. Load capacity: 6-30T
2. Customer-design
3. Adjustable leg support
4. Electric control or manual control
5. Emergency buttons


If you need special size yard ramp, we also can customize for you, thanks!
