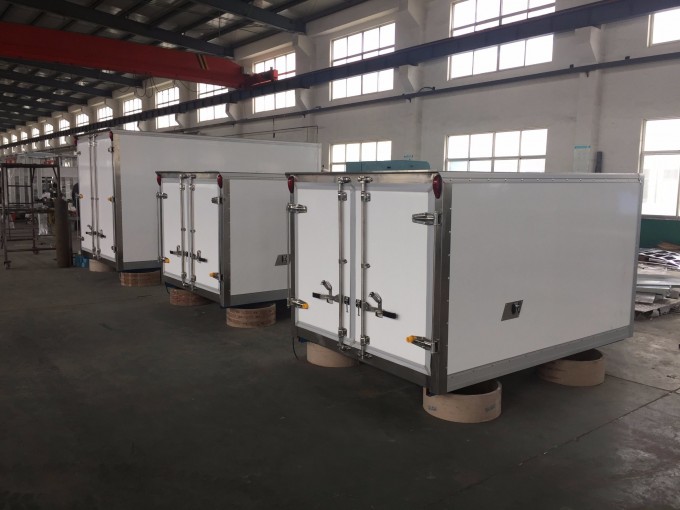

Fiberglass XPS Composite Panel Refrigerated Truck Body

Refrigerated and Insulated Truck Body

* Material: Resin adhensive, Fiberglass sheet, XPS panel, Stainless steel 304 and aluminium profile

*High production of the orders is welcomed too and CNC machine to ensure the accuracy of the measurement of the product to achieve a higher satisfaction from customers

Refrigerated and Insulated Truck Body Performance:
1. Outer/inner skin is FRP panel
2. XPS insulated, foam density 38kg/m3
3.304 stainless steel locks, hinges, door frame, wrap angle
4. Aluminium alloy Edge Protector
5. EPDM rubber door seal
6. Thickness: 85mm, 100mm ,120mm or other special demands, body size as you demanded
7. Side door is optional
8. Light in weight: 40% lighter than metal body.
9. Better insulation: K value less than 0.3w/m2k...
10. High in strength and long life: 5 times longer than metal body.
11. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
12. Easy to be assembled and repaired at site.

* Products can be shipped in CBU (completely built up) and CKD (completely knock down) type.

* Temperature range, -18° C--+25° C, special request reach to -40° C

* The Thickness: 85mm, 100mm. With the dimensions, the truck body can be the best

Refrigeration Effect. We can also change the thickness by your requirements. And the thickness range is from 60mm to 150mm.

HXFHInsulatedReeferTruckBody
ExternalDimensions	2650mmX1800mmX1400mm
SpecificationOfbasePanel
PanelThickness	85mm
MaterialOfOutsideWall	SmoothFiberglassSheetThickness2.5mm
MaterialOfInsulation	Fiberglass2.5+XPS80+WaterproofPlywood18+Fiberglass2.5
CrossMember	PaintedSteelCrossBeam80mmX40mmX3mm
SpecificationOfWallPanel
PanelThickness	85mm
MaterialOfOutsideWall	SmoothFiberglassSheetThickness2.5mm
MaterialOfInsulation	Fiberglass2.5+XPS80+Fiberglass2.5
MaterialOfInsideWall	SmoothFiberglassSheetThickness2.5mm
SpecificationOfDoorPanel
PanelThickness	85mm
MaterialOfOutsideWall	SmoothFiberglassSheetThickness2.5mm
MaterialOfInsulation	Fiberglass2.5+XPS80+Fiberglass2.5
MaterialOfInsideWall	SmoothFiberglassSheetThickness2.5mm
AccessoriesStandard	FrontLedLamp2Pcs
	RearLedLamp2Pcs
	2RearDoors
	SS304StainlessSteelDoorframe
	SS304StainlessSteelDoorLockParts
	AluminiumProfileAndWrapAngle
Optional	SideDoorAndDoorPlasticCurtain
	AluminumCheckerFloor
	AluminumKickPanel
OEMService	Yes
