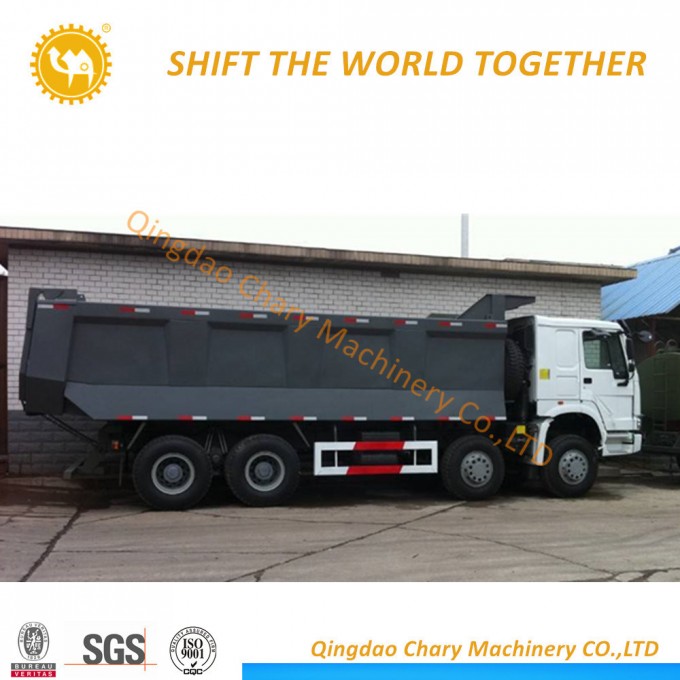

HOWO Dump Truck 12 Tyres 371HP 40tons
Our company will offer you the high quality products with alow price, quick delivery,and professio
nal after-sale service.
HOWO Dump Truck 12 Tyres 371HP 40tons
| Wheelbase(mm) | 3300+1350 | Overall Dimension
(L*W*H)(mm) | 7768×2490×3090 |
| Front/ rear suspension(mm) | 1418/1600 | Front/Rear tread(mm) | 2020 / 1830 |
| Gross weight (kg) | 24950 | Axle number | 4 |
| Payload(kg) | 12555 | Body inner Dimension
(L*W*H)(mm | 4800×2300×1500 |
| Curb weight(kg) | 12400 | Front/Rear axle load(Kg) | 6975/17975(rear double axle combined) |
Approach/ departure angle
( ° ) | 25/24 | Max Speed (km/h) | 75 |
| Cab capacity | 3 | Cab Type | flat head |
| Chassis Technical Parameter |
| Chassis Model: | CA3252P2K2BT1A1 | Chassis manufacturer: | China No 1 Automobile Group Co. Ltd |
| Gear Box | Fast 9JS135 (with 9 forward
and 1 reverse ) | Transmission type: | Manual |
| Steering Type | LHD(Power steering) | Traction Type: | 8*4 |
| frame type | strengthen | Rear axle | 300 |
| Brake System | Air brake |
| Leaf Spring number: | 11/12 | Tire size/type | 11.00-20,11.00R20,12.00-20,12.00R20R |
| Engine specification |
| Engine Model: | CA6DL2-33 | Engine Brand | China No 1 Automobile Group Co. Ltd |
| Fuel type: | Diesel | Displacement(ml) | 8600 |
| Emission stand | Euro 3 | Power(kw) | 246(335hp) |
| Warranty | 12 months, from the date of supply |
Remarks | 24V Electric system, T lifting, electrically hydraulic operation control |
| load Capacity:16m 3 ,15 tons |
| Tippingtype: Fronttippingtype ,rear dump type |
| Material: carbon steel, thicknessofbodysteel(mm):floor8 side&back 6 |
