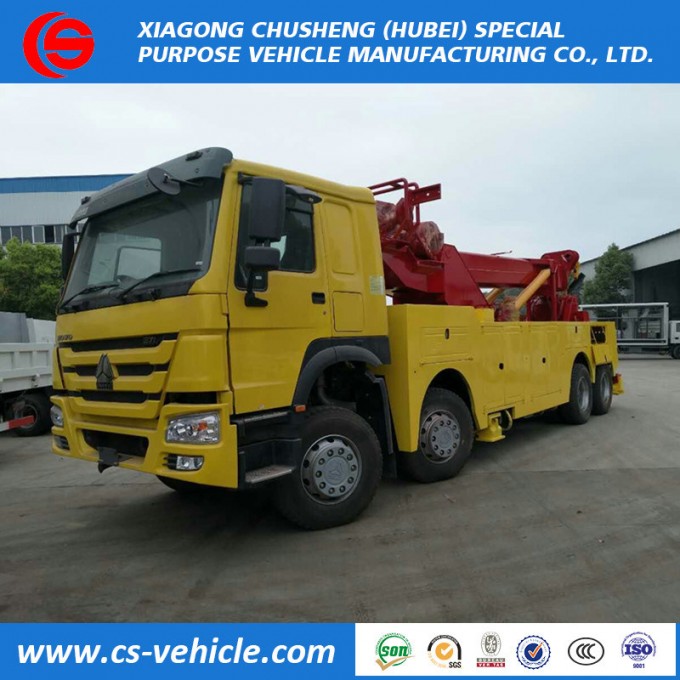

Sinotruk HOWO 8X4 50 Tons Road Wrecker Truck Towing Recovery Trucks price
Features
1. Heavy Duty Truck Chassis with Large Horse Power
2. Large Capacity Crane with High Tension Hoist Cable
3. Full Hydraulic Controlled Towing Bar
4. Optional Lifting Fork Design.
Technical parameter for HOWO 8x4 371hp 40 tons wrecker truck 40 ton tow truck:
| Cabin | Driving type 8x4, Right hand drive | |||
HOWO 76 cab, with air condition and one bed, 70°hydraul`ically tillable to the front as attached photo for ref. | ||||
| Vehicle Main Dimensions | Overall dimensions (L x W x H) mm | 11460×2500×3270 | ||
| Wheel base (mm) | 1800+4600+1350 | |||
| Wheel track (front/rear) (mm) | 2022/1830/1830 | |||
| Approach/Departure angle(°) | 16/18 | |||
| Weight in KGS | Tare Weight | 24870 | ||
| payload | 30000 | |||
| Front axles loading capacity | 2x9000 | |||
| Rear axles loading capacity | 2x16000 | |||
| Engine | Brand | Sinotruk | ||
| Model | WD615.47 | |||
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
| Horse Power(HP) | 371 | |||
| Emission standard | Euro | |||
| Gearbox | HW19710, 10 Forwards gear & 2 reverse gear | |||
| Tire | 12R22.5 tubeless tire with one spare | |||
| Clutch | Reinforced diaphragm clutch, diameter 430 mm | |||
| Steering | ZF8098 | |||
| Oil tank | 400L | |||
| Special Device For Wrecker System | ||||
| Hoisting Organ | Rated under-pulling capacity | 40000 | ||
| Max Under-hoisting Capacity (kg) | 16000 | |||
| Max Under-hoist length (mm) | 1630 | |||
| Under hoisting work angle | -10~85° | |||
| Lifting Organ | Max lifting capacity(kg) | 30000 | ||
| Max lifting high(mm) | 12000 | |||
| Telescope length(mm) | 6000 | |||
| Winch | 15000kgs×2 | |||
| Steel rope | 50M,Φ22 | |||
| Crane luffing angle | 5°~ 60° | |||
| Crane rotation angle | 360°All Rotation | |||
Landing Leg | Distance between front legs(mm) | 6100 | ||
| Distance between rear legs(mm) | 4000 | |||
1.Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is afamous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2.Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.
3.We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.
We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.
For more information for flatbed towing truck,recovery truck,wrecker truck, please contact:
Krystal Zhang
Sales ManagerXiagong Chusheng (Hubei) Special Purpose Vehicle Manufacturing Co., Ltd.
