9424212112 Truck Brake Disc Price for Benz

Benz /BPW /MAN/VOLVO/BENZ/SCANIA/SCANIA/Brake Discs
High quality Toyota car disc brake
SGS Passed High Quality Benz E grade W212 Brake Disc Rotor Motorcycle Parts With ISO9001 Certification
We will provide our professional services to all of our customers, Feel free to send inquiry if you need any help, we will quote price within 12 working hours for your reference.
FACTORY PRICE with strict QT Inspection team to make sure each one can be inspected before shipping.
BOSSA GPOUP INTROUDUCTION
Xingtai Bossa Machinery Manufacturing Co., Ltd is a group company that specializes in search, manufacture, sales and service.
We have 5 branches factories, one moulds opening factory, Two pcoated sand and lost foam factories, one steel pssure casting factory, one aluminum pssure casting and 2 imported and exported companies, Bossa and Yuejiang company.
Our leading products have various ofbrake shoe,wheel hubs, brakedrum,leaf spring bracket,axle parts,
gearbox housing, cylinder head and block etc.
Our manufacturing and exporting investing parts, die casting parts, CNC machined parts, forging parts, stamping parts and metal sheet parts.
Any products can be made if drawings and samples can be supplied.
Auto Parts Factory 40206-2S400 Niissann d22 d21 brake disc rotors

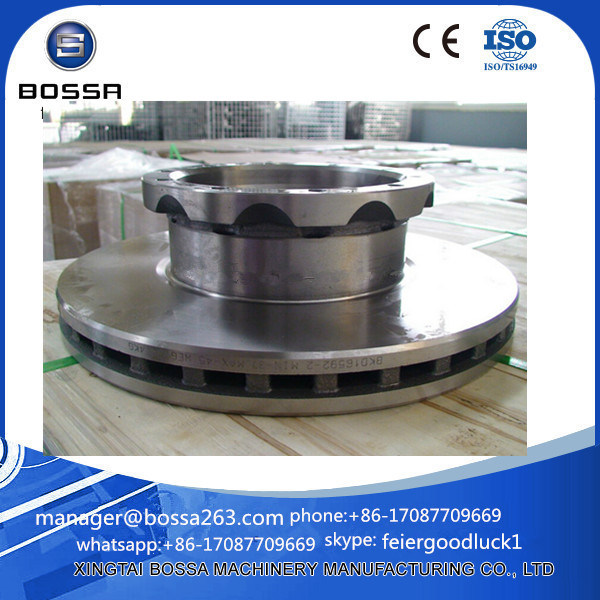

9424212112 for Benz Truck Brake Disc Price

Material Requirements
1. Must meet Grade GG20 for gray iron castings
2. Chemical Composition (Percent)
* Total Carbon: 3.0 - 3.50%
* Silicon: 1.90 - 2.30%
* Manganese: 0.60 - 0.90%
*Phosphorus: 0.12% Max.
* Sulfur: 0.10% Max.
3. Microstructure:
Graphite Structure: Predominantly type A, size 3-5.
Matrix: Pearlistic with max.15 ferrite. Free from chill
4. Physical Properties
Tensile Strength: Min. 200 N/mm
Brinell Hardness: 190 ~ 230

Product Details

Outer Diameter [mm]	430
Thickness [mm]	45
Minimum Thickness [mm]	37
Height [mm]	132,5
Hole Arrangement / Number	10/10
Weight [kg]	30,6
Pitch Circle Ø 1 [mm]	238
Hub Bore Ø [mm]	198

Car Descriptions

MERCEDES-BENZACTROS	96/04 - 02/10
MERCEDES-BENZATEGO	98/01 - 04/09
MERCEDES-BENZCITARO (O 530)	99/04 - /
MERCEDES-BENZECONIC	98/01 - /
MERCEDES-BENZAXOR	02/01 - 04/10
MERCEDES-BENZACTROS MP2 / MP3	03/04 - /
MERCEDES-BENZAXOR 2	04/10 - /

1,Elementcontents

Material	C	Si	Mn	P	S	Cu	Cr
	3.10-3.60	1.60-1.90	0.60-0.90	≤0.10	≤0.10	0.2-0.4	0.2-0.4

2,MechanicalProperties
Tensile≥206MPa
187-258HBS
3,Microstructure

Material	Graphitemorphology	GraphiteLength	Pearlite	Ferrite
	Atc≥85%	3-5	≥92%	≤5%

Standard	C	Si	Mn	P	S	pb
G3000	3.20-3.60	1.90-2.30	0.45-0.90	≤0.15	≤0.17	≤0.02

VehicleSpecificDesignsMatchOEform,fitandfunction;ultimatestrength
BlackFusionCoatingImprovesappearanceforaclean,finishedlook
MillBalanced100%validationensuresproperbalance;minimizesvibration VehicleSpecificVaneConfigurationsMatchOE;optimalcooling,reducedfade,lessnoiseandincreasedpadlife
ApplicationSpecificIronSuppssesnoise;keepsbrakesrunningcool,quietandvibrationfree
RotorsmeetSAEStandardfortensilestrengthG3000qualifiedmaterialforstructuralintegrityandmaximumservicelife
TurnedFinishInstallationready;minimizesnoiseandimprovesresponsiveness
TightestLateralRunout0.002″orlessforlesspedalpulsationandbrakenoise;extendedpadlife

(1)Features:
1.Material:GrayironHT250,MeettheAmericanStandardG3000,Alsoofferductilecastiron.
2.Hardness: 180- 240HB
3.Stable coefficient friction
4.Low noise, no dust
5.Long service life

(2)Machining andmanufacturing:
CNC maching center.onekind is normal turning, second is grinding,third is slotted and drilled.Many years of production experience.Passed 100% dimension inspection, crack detection and dynamic balance inspection.

(3)Certification:ISO9001: 2000, TS16949.SGS

(4)The car's brake disc we can make for:BPW, MAN, VOLVO,BENZ, SCANIA , SCANIA , DURAmetaL , IVECO , NISSAN , RENAULT ,HINO, HYUNDAI,etc.

PACKAGE AND SHIPPING

Most reasonable and competitiveprice
Courier Service	UPS , DHL ,TNT, FEDEX and EMS for light weight items
Delivery Time	Stocked items, within5 days
Payment Method	T/T, Western Union, Money gram, Paypal, L/C,
PACKAGE
Type 1	Carton Box + Pallet
Type 2	Plastic Bag + Carton Box + Pallet
Type 3	Plastic Bag(Design) + Carton Box(Design) + Pallet
Type 4	Plastic Bag(Design) + Carton Box(Design) + Wooden Case

FAQ:
1. Can you do machining in your house? Rough machining or final machining?
Yes, we could do machining, both rough and final machining.
2. Casting technology of our products?
Sand casting, Die casting, Pressure casting, Lost foam casting.
3. Most used pattern tech?
Lost foam casting.
4. Is it possible to do painting?
Yes, painting by ourself.
5. What are the key raw material used in your foundry?
Casting iron, steel , Aluminum raw material etc
6. What is it the range of unit weight your production facilities currently handles?
Min: 1KG Max:7000kg
7. Furnace type?
Electric
8. What is it the range of sand box dimensions that your production can handle?
Lengh:22000mm*Thickness:10000mm*Height:15000mm
9. Max production capacity per year in ton? Actual annual production in last year?
Max production 30000 tons, 26000 tons in last year.
10. Raw material of Iron used?
Grey cast iron, Ductile cast iron, Vermicular cast iron
11. All the processes are produced by yourself?
Yes, From moulds development, lost foam casting production, painting to final machining parts, all the process are produced by ourself.
12. How could you guarantee the products quality?
Pls look at our QUALITY MANAGEMENT SYSTEM, all the process will be passed our technical test. 100% qualified products can leave our factory
13. How about your after sales service?
24 hours service by our professional sales man, any question you could ask us through alibaba or by email.
14. Is it competitive for your price?
Yes, Our price is very competitive in north of China. Such as, labor cost, (Xingtai is a small city, for our labor cost is cheap than the big cities.)
