Dongfeng Rhd Wrecker 4*2 4 Tons Lifting Lorry Truck Price

Crane truck series of our company: high power, high speed, good climbing ability, high lifting height, huge operating range.
The use of well-known domestic hydraulic pump system, can achieve rapid lift, efficient, energy saving. The machine has the advantages of flexible, easy operation, efficient work, safe and reliable . Lorry crane truck can be widely used in a variety of loading and unloading, installation of lifting operations, especially for field lifting, rescue operations and in the station, port, warehouse, construction site and other narrow places.

Using the domestic well-known brand crane, optional telescopic straight arm or folding arm crane, and optional two-arm, three-arm, 24-dimensional card sets of pipe joints, high-pcision cold drawn tube completely solve the oil spill. High-strength steel plate production makes the lighter weight and greater loading; with the truck lifting truck full hydraulic, full rotation; from the operating radius of the operation; new type of H leg. Crane can be two-way operation, rotation angle: ± 360 degrees, continuous rotation, slewing speed and lifting speed can be adjusted.

There are 2.5 tons, 3.5 tons, 4 tons, 5 tons, 6.3 tons, 7-16 tons of crane can choose, can choose two arm, three arm, four arm, can choose straight arm or folding arm Type crane.

Specification

CLW5503SCD Truck With Crane
Chassis Model		EQ1110T9ADJ3AC
Loading Capacity		kg	6000
Gross Vehicle Weight		kg	10800
Curb Weight		kg	5500
Overall Dimension		mm	7050 x 2420 x 3230
Wheelbase		mm	3800
Wheel Track	Front	mm	950
	Rear	mm	800
Minimum Ground Clearance		mm	300
Engine		CY4102-C3F, Turbo ,4-Cylinder, In line, Diesel
Power		kW	90
Engine manufacturer		Dongfeng Chaoyang Diesel Co., Ltd
Fuel Consumption		L/100Km	13
Fuel Tank Capacity		L	300
Transmission		Fuller RT-11501B
Ratio		12.42 8.26 6.08 4.53 3.36 2.47 1.81 1.35 1.00 12.99( r )
Steering		ZF8098, Hydraulic powered
Tires		9R20
Maximum Speed		Km/h	90
Maximum Grade ability		%	28
Minimum Turning Circle		m	18.6
Max. Brake Distance(Fully laden,30km/h)		m	9.5
Swing Angle		o	360

Optional Crane
well-known crane brands can be chosed:
A. 3.2-ton,2-section straight arm, lifting height of 6.8 meters, working radius of 5 meters, rack rotation.
B. 3.2-ton, 3-section straight arm, lifting height of 9.5 meters, working radius of 7.5 meters, all rotation.
C. 3.2-ton,3-section foldable arm, lifting height of 10 meters, working radius of 7.3 meters, rack rotation.
D. 4-ton,3-section straight arm, lifting height of 10.5 meters, working radius of 7.9 meters, all rotation.
E. 4-ton,3-section foldable arm, lifting height of 10.2 meters, working radius of 7.3 meters,rack rotation.

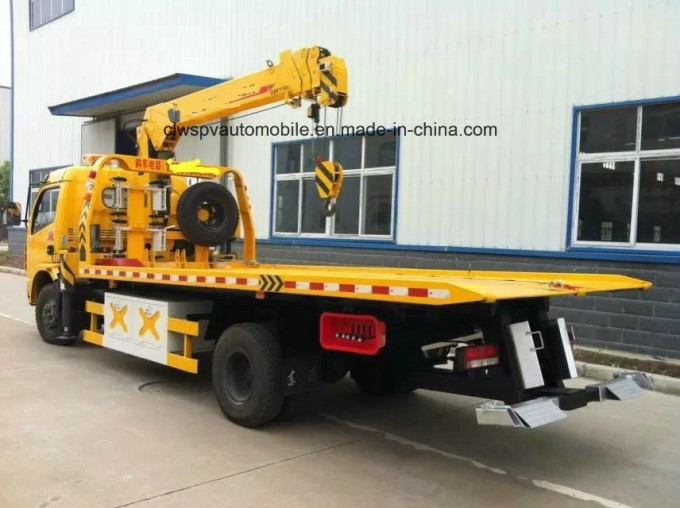

Truck With Crane Show


















Q&A

1.Q: Are you a manufacturer or trading company? A:We are manufacturer.You are welcomed to visit our factory. Factory Address: Chengli Automobile Industrial Park, South Suburb, Suizhou, Hubei, China

2.Q: What kind of payment do you accept? A: We accept T/T and L/C usually. If you want to use others payment, contact us for /confirm/iation.

3.Q: Can you customize trucks according to customers' need? A: Yes,product customization service is our speciality.

4.Q:What's your after-sale service? A: We provide technical support for our products. Besides, we also provide spare parts as long as customers need.

5.Q: What's your delivery time? A: It depends on the quantity, usually takes 10-15 business days.

Chengli automobile co.,Ltd covers an area of about 67 hectares, more than 8000 employees, production and sales of various special vehicles more than 300 kinds.
Our company is keeping growing during 15 years. Our sales revenue reached 400 million dollars and exports reached 20 million dollars in 2016.
Our leading varieties include refuel tank truck, sprinkler, tank truck, garbage truck, suction truck, sewage suction truck, dump truck, van, trailer, wrecker, truck cranes, aerial vehicles, coach cars, bulk cement truck, chemical trucks, fire truck, cement mixer, tractor and other eight series of more than 300 a variety of models.
We have got five first in the field of special automobile:
1.Sanitation car sales ranked first in the country;
2.Special vehicle production and sales ranked first in the country;
3.The first private enterprise pass the test of the A2, C2 three types of pssure vessel by once;
4.The first private enterprise through the enterprise qualification approval of low-speed truck test by once;
5.The first private enterprise through the new national standard of fire acceptance.

Seeing is believing! Welcome to visit our factory!
We will customize the best trucks for you!
