2116 Gallon Fully Refrigerated LPG Propane Delivery Road Truck
2116 Gallon Fully Refrigerated LPG Propane Delivery Road Truck

2116 Gallon Fully Refrigerated LPG Propane Delivery Road Truck

Categories: LPG Tank , LPG Tanker Truck
FOB Price:0.00 USD /Unit
Minimum Order Quantity:1 Unit(s)
Supply Ability:242 Unit(s)
Payment Terms:L/C, T/T, D/P, Western
Company Profile
Contact:MissXiChen
E-mail:
Fax:
Capital:US$ 0 Million
Employees: 1000-3000人 People
Detailed Description



Specification
Items Data   Items Data
Curb weight 7100 kg   Design pressure 1.61Mpa
Payload 3360 kg Design temperature 50 ℃
G.V.W. 10460 kg Filling medium LPG
Capacity 8 m3 Tank material Q345R Carbon Steel
Wheel base 3950 Corrosion allowance 1.0 mm
External Dimensions 7100*2230*2810mm Hydraulic test pressure 2.22Mpa
Tank Diameter 1600mm Thickness of material Tank 8 mm
Tank Length 4266mm Cover 8 mm ellipse
Emergence cutting valve   Safe valve
Nominal pressure PN2.5Mpa   Model Inner full lift
Nominal diameter Gas phase DN 25mm Nominal pressure PN2.5 Mpa
Liquid phase DN 50mm Nominal diameter DN80mm
Operation way Mechanical type set-pressure 1.77 Mpa
Closing time ≤10 Sec Rated relieving pressure <1.93 Mpa
Melt switch temperature 70±5℃
Level meter   Inlet and outlet
Model Handle Rotary type   Model Quick tie-in
Nominal pressure PN2.5Mpa Nominal diameter Gas phase DN25mm
Surveying range 50~2300mm Liquid phase DN50mm
Precision 2.5 Grade



Product Image

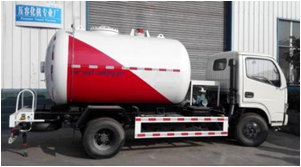

2116 Gallon Fully Refrigerated LPG Propane Delivery Road Truck Image1
ABOUT US

  ChengLi Special Automobile Co.,Ltd, appointed by the Ministry of Industry and Information Technology of China, is one of the biggest special truck manufacturer in China.

  1.We maintain a long and interactive cooperation relationship with our chassis suppliers, such as DONGFENG, FAW, SINOTRUK, FORLAND and etc;

  2.Capacity of production of more than 300 kinds of special trucks and semi-trailers, higher standard is always what we pursuit;

  3.Exportation to more than 68 countries, such as Africa, South-east Asia, Australia and etc, reliability and good quality are our key points to gain our customers' reputation.

  Our Service

  1. Special Truck Manufacturing: Dump Truck, Sewage Suction Truck, LED Advertising Truck, Ice Cream Truck, Refrigerator Truck ...

  2. Pressure Vessel Manufacturing: LPG,Liquid Ammonia,Dimethyl ether,Isobutane,Propylene

  3. We will reply you for your inquiry in 24 hours.

  4. After sending, we will track the products for you once every two days, until you get the products. When you receive the goods, test them, and give us a feedback.If you have any questions , contact with us, we will provide technique solutions for you.

  FAQ

  Q1: What is your terms of payment?

  A: T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.

  Q2. What is your terms of delivery?

  A: FOB, CFR, CIF

  Q3. How about your delivery time?

  A: Generally, it will take about 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

  Q4. Can you produce according to the customer’s requirements?

  A: Yes, we can produce by your requirements or technical drawings.

  Q5. Do you test all your goods before delivery?

  A: Yes, we have 100% test before delivery

  Q6: How do you make our business long-term and good relationship?

  A:1. We keep good quality and competitive price to ensure our customers benefit ;

  2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
