HOWO 50ton 8*4 Recovery Truck Breakdown Tow Truck
HOWO 50ton 8*4 Recovery Truck Breakdown Tow Truck

HOWO 50ton 8*4 Recovery Truck Breakdown Tow Truck

Categories: Truck , Wrecker Truck
FOB Price:96000.00 USD /Unit
Minimum Order Quantity:1 Unit(s)
Supply Ability:734 Unit(s)
Payment Terms:L/C, T/T, D/P, Western
Company Profile
Capital:US$ 0 Million
Employees: 1000-3000人 People
Detailed Description
HOWO 50TON 8*4 recovery truck breakdown tow truck
Truck Specification
Truckmodel CL5310TQZZ3
Cab Sinotruck HOWO HW76 cabin ,, with power steering., with a/c
Driving Type 8*4
Max Speed (km/h) 90
Overall dimension(mm) 10685*2500*3460
Mass in working order(kg) 19525
GVW(kg) 31000
Wheelbase(mm) 1800+4600+1350
F/R track base(mm) 2022/1830
F/R overhang(mm) 1500/880
Approach/Departure Angel 16/10
Tire 12.00R20(10+1)
Clutch Single plate friction type with air booster system
Steering Power assisted steering.
Gear box Manual Synchromesh
Bridge Front axle HF9
Rear axle HC16
Enging Model WD615.47
Type cylinder water cooled diesel engine to be fitted with diesel particulate filter in-built.
Exhaust(ml) 9726
Max output power/rotate speed (hp /rpm ) 371/2200
Max torque/rotate speed(N.m/rpm) 1500/1100-1600
Brakingsystem Service Brake Air over hydraulic dual circuit system
Park Brake Mechanical, internal expanding acting on transfer output shaf
Eletric system 24v
Wrecker Type Hydraulic operated 3telescope boom
Boom structure Retracted -30,000 kg
Extended -6,500 kg
Lifting height:12230mm
power Elevation
Power Extension
Dual Hydraulic Pump
360 degree sheave heads
Hydraulic Under Lift at Rear Fully retracted 20000 kg
Fully extended 125000 kg
Towing capacity 30000kgs
Under Lift- 7° -16
Hydraulic Outriggers 4 in-built with power elevation& extension.
Hydraulic winches &steel cables Dual,
15,000 kg x2-Planetary type
Cable Type: Steel cable60m length ,20mm diameter,
Power take off PTO drive from transmission
Wrecker Operation Panel board comprising joysticks and hydraulic meters installed in asuitable place out of crew cabin.
Hydraulic System Suitable capacity gear pumps for boom movement, telescoping cylinder, power steering and control valves &control system shall be with adequate size oil reservoir, integral oil cooler, valves etc.
Safety Device
Auto brakefor winch Automatic safe brake in case winch /Engine fail.
Hydraulic valves Necessary hydraulic pressure relief &lock valve/ valves

HOWO 50ton 8*4 Recovery Truck Breakdown Tow Truck

HOWO 50ton 8*4 Recovery Truck Breakdown Tow Truck

Product Image

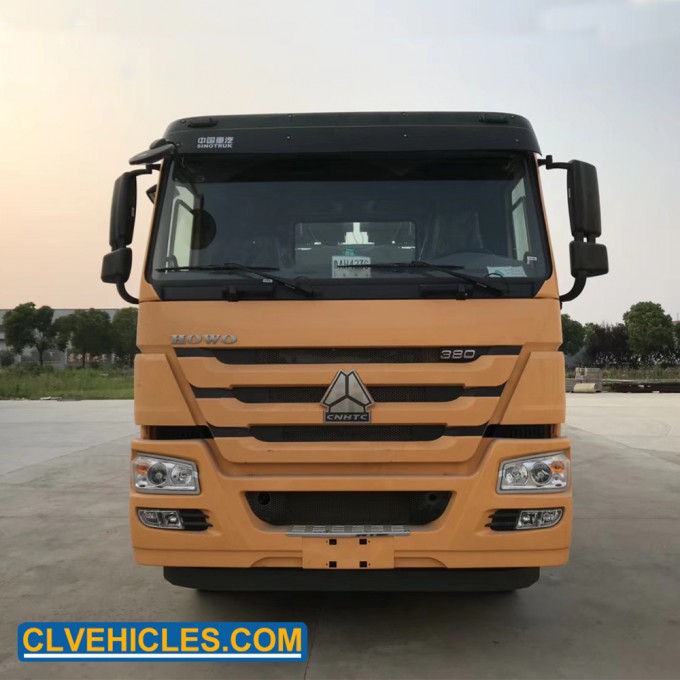

HOWO 50ton 8*4 Recovery Truck Breakdown Tow Truck Image1

  ChengLi Special Automobile Co.,Ltd, appointed by the Ministry of Industry and Information Technology of China, is one of the biggest special truck manufacturer in China.

  1.We maintain a long and interactive cooperation relationship with our chassis suppliers, such as DONGFENG, FAW, SINOTRUK, FORLAND and etc;

  2.Capacity of production of more than 300 kinds of special trucks and semi-trailers, higher standard is always what we pursuit;

  3.Exportation to more than 68 countries, such as Africa, South-east Asia, Australia and etc, reliability and good quality are our key points to gain our customers' reputation.

  Our Service

  1. Special Truck Manufacturing: Dump Truck, Sewage Suction Truck, LED Advertising Truck, Ice Cream Truck, Refrigerator Truck ...

  2. Pressure Vessel Manufacturing: LPG,Liquid Ammonia,Dimethyl ether,Isobutane,Propylene

  3. We will reply you for your inquiry in 24 hours.

  4. After sending, we will track the products for you once every two days, until you get the products. When you receive the goods, test them, and give us a feedback.If you have any questions , contact with us, we will provide technique solutions for you.


  Q1: What is your terms of payment?

  A: T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.

  Q2. What is your terms of delivery?


  Q3. How about your delivery time?

  A: Generally, it will take about 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

  Q4. Can you produce according to the customer’s requirements?

  A: Yes, we can produce by your requirements or technical drawings.

  Q5. Do you test all your goods before delivery?

  A: Yes, we have 100% test before delivery

  Q6: How do you make our business long-term and good relationship?

  A:1. We keep good quality and competitive price to ensure our customers benefit ;

  2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
