Home> Products> Truck>Wrecker Truck> Dongfeng Isuzu 5 Ton Wrecker Road Tow Recovery Flatebed Towing Truck
Dongfeng Isuzu 5 Ton Wrecker Road Tow Recovery Flatebed Towing Truck
Dongfeng Isuzu 5 Ton Wrecker Road Tow Recovery Flatebed Towing Truck

Dongfeng Isuzu 5 Ton Wrecker Road Tow Recovery Flatebed Towing Truck

Categories: Truck , Wrecker Truck
FOB Price:12500.00 USD /Unit
Minimum Order Quantity:1 Unit(s)
Supply Ability:141 Unit(s)
Payment Terms:L/C, T/T, D/P, Western
Company Profile
Capital:US$ 0 Million
Employees: 1000-3000人 People
Detailed Description

DFAC Dongfeng 4x2 4Tons 5Tons Wrecker Platform Tow Truck

Dongfeng ISUZU 5 Ton Wrecker Road Tow Recovery Flatebed Towing Truck

Tow truck, whole name isroad wrecker, also called as thewrecker truck,tow wrecker truck,tow truck wrecker,wrecker towing truck,etc.

Our tow truck consists of the chassis, hoisting equipment,truck tow hook, tow truck winch, tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.

The tow truck can hoist, lift, draw and be with other special functions, mainly used in highway and city road obstacle cleaning.

Our one tow two wrecker truck which called flatbed tow truck can also deal with 2sets of accident vehicles, upper back down tow, and mainly used within 3tons of cars.

Equipped with 3ton to 5ton lift equipment, bind belt, auxiliary wheel, Jtype of hook, winch, electronic lamp, 20M steel wire,megaphone,etc

Truck Specification
Driving Type 4*2
Max Speed (km/h) 103
Overall dimension(mm) 7305x2380x2250
Mass in working order( kg) 4800
GVW( kg) 7300
Wheelbase(mm) 3815
F/R track base (mm) 1504/1522
F/R overhang (mm) 1015/2475
Approach/Departure Angel 16/12
Tire 7.00-16
Clutch Single-plate dry diaphragm spring clutch
Steering Hydraulic steering with power assistance
Gear box MSB 5-speed gear box
Bridge Front axle 2.5T
Rear axle 4.8T
Enging Model 4KH1-TCG40
Horse power 120HP
Displacement 2999L
Braking system Service Brake Compressed air brake
Park Brake Spring energy
Eletric system 24v
Upper-Body specification
Hydraulic Under Lift at Rear
Max Lifting weight(kg) 3000
Max. Rated towing weight(kg) 5000
Max effective length of boom(mm) 1700
Extension traveling of boom (mm) 1340
Hydraulic winches & steel cables
Type: Planetary type
Quantity (set) 1
Max. Pulling power of winch(kgs) 4000
Length of steel cable(m) 21
Speed of winch (m/min) 3.23
Diameter of winch(cm) 11
Back load platform
External dimension of platform (length×width)(mm) 5600*2350
Max. Loading of platform(kgs) 4000
Min. Elevation of full extending platform° 10
Extension traveling of platform 3000
Power take off
Type PTO drive from transmission
Wrecker Operation
Description Panel board comprising joysticks and hydraulic meters installed in a suitable place out of crew cabin.
Hydraulic System
Description uitable capacity gear pumps for boom movement, telescoping cylinder, power steering and control valves & control system shall be with adequate size oil reservoir, integral oil cooler, valves etc.
Safety Device
Auto brake for winch Automatic safe brake in case winch / Engine fail.
Hydraulic valves Necessary hydraulic pressure relief & lock valve/ valves
Do<em></em>ngfeng Isuzu 5 Ton Wrecker Road Tow Recovery Flatebed Towing Truck

Do<em></em>ngfeng Isuzu 5 Ton Wrecker Road Tow Recovery Flatebed Towing Truck
Our Comapny:
Do<em></em>ngfeng Isuzu 5 Ton Wrecker Road Tow Recovery Flatebed Towing Truck

For more Flatbed Wrecker Tow Truck information, please feel free to contact meor send an inquiry to me
Product Image

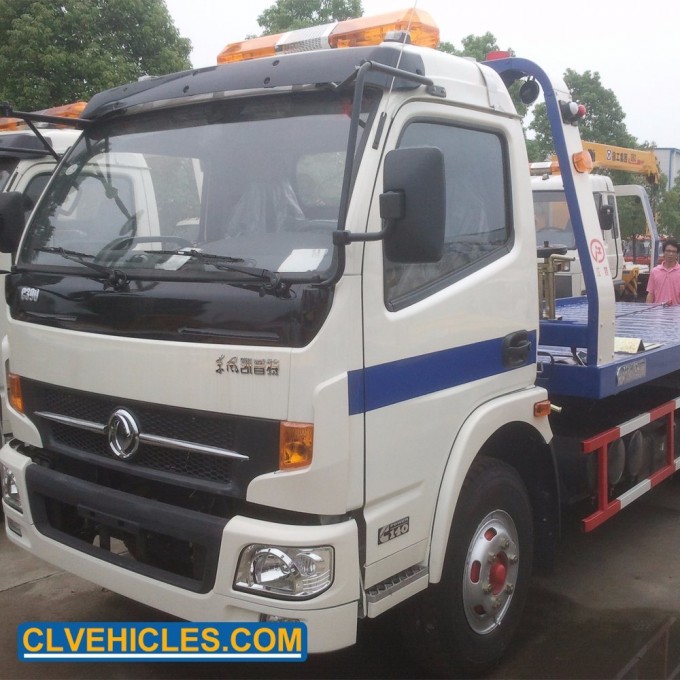

Dongfeng Isuzu 5 Ton Wrecker Road Tow Recovery Flatebed Towing Truck Image1
