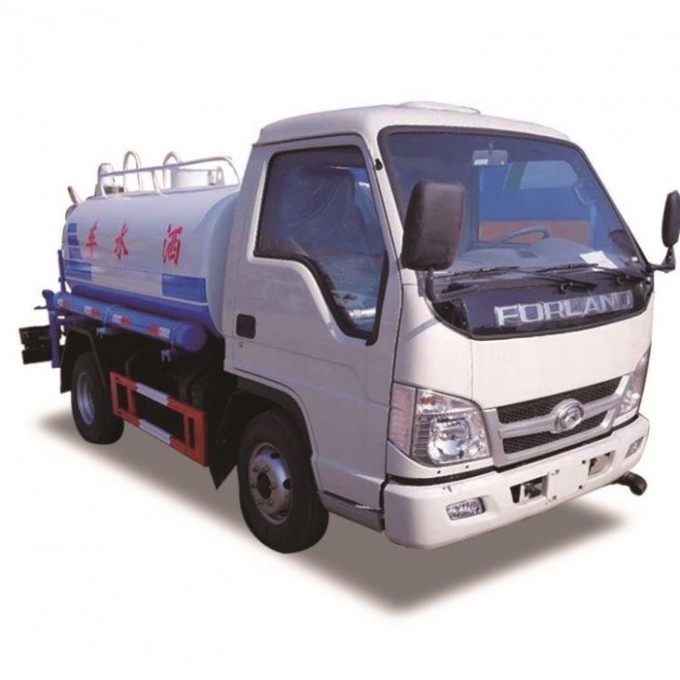

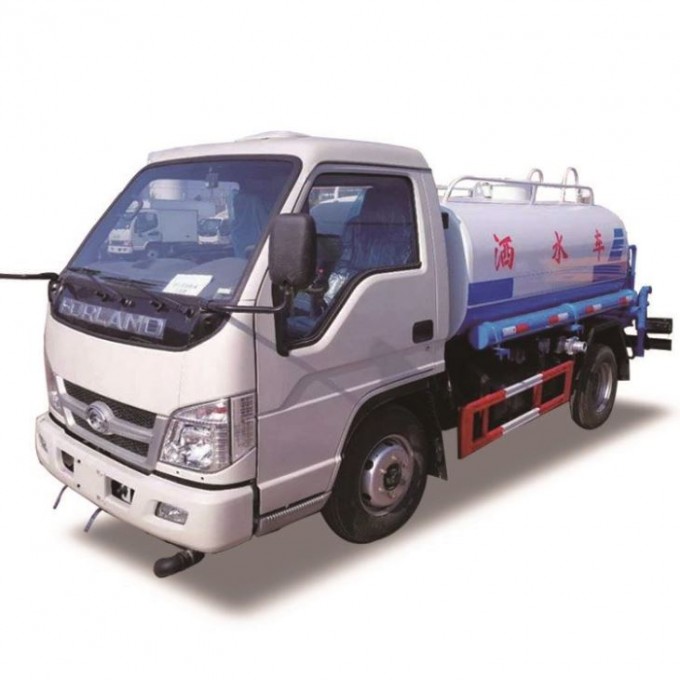

Foton 5000liters water tank truck optional configuration: GPS, universal nozzle, electromagnetic valve, pneumatic valve, visual operating system, external power, medicine tray. The basic composition of Futian sprinkler: anti-rust tank, power take-off, drive shaft, special self-priming sprinkler pump, pipe network, spray outlet, working platform, Futian chassis.
Chassis configuration: using Futian era original chassis, 490 all-wood economy engine, 5-speed gearbox, imitation Isuzu 5-ton rear axle, 170 swallow-tail girders, with warm air, era King Kong Ruiteng single-row flat-top white front cab With skylights.
Modified configuration: The tank body is made of 4mm thick WISCO high-quality carbon steel plate, the actual volume is 5 cubic meters, the front punch (spray) is sprinkled, with side spray, the tank body is equipped with a working platform, the platform is equipped with green sprinklers, and the sprinkler can be used in all directions. Rotating, can be continuously adjusted into straight flush, heavy rain, light rain, drizzle, with safety guardrail, pump can self-prime self-discharge, install filter, with fire-fighting interface, can enter water through fire hydrant, with self-flow valve, optional car 20 meters green reel, can spray pesticides, tank metal paint. Users can choose to install fire-fighting high-power fire-fighting water pump, and can be used as fire-fighting sprinkler in emergency.
| Foton 5000liters water tank truck | ||
|
General |
Vehicle Brand |
Chengli |
|
Chassis Brand |
BJ1073VEJEA-A |
|
|
Overall Dimension (mm) |
7585×2370×2925 |
|
|
GVW / Kerb Weight (kg) |
7000 |
|
|
Cab |
Cab Capacity(person) |
3 |
|
Air Conditioner |
optional |
|
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
xichai |
|
|
Power |
105 |
|
|
Displacement(ml) |
3857 |
|
|
Emission Standard |
GB17691-2005GV, GB3847-2005 |
|
|
Chassis |
Drive Type |
4*2 |
|
Transmission |
8 |
|
|
Wheelbase/No. of axle(mm) |
4140 |
|
|
Tire Specification |
9.00-20 |
|
|
Tire Number |
6 |
|
|
Max Speed |
90 |
|
|
Superstructure |
Body capacity(m3) |
8 |
|
Sprinkled width (m) |
15 |
|
|
Self-suction height (m) |
7 |
|
|
spray water (m) |
20-30 |
|
|
Water canon range (m) |
30 |
|
|
Main function |
Watering, carrying water, drought, emergency fire fighting. |
|
|
optional |
volume: 2000-30000L |
|
