Detailed Description

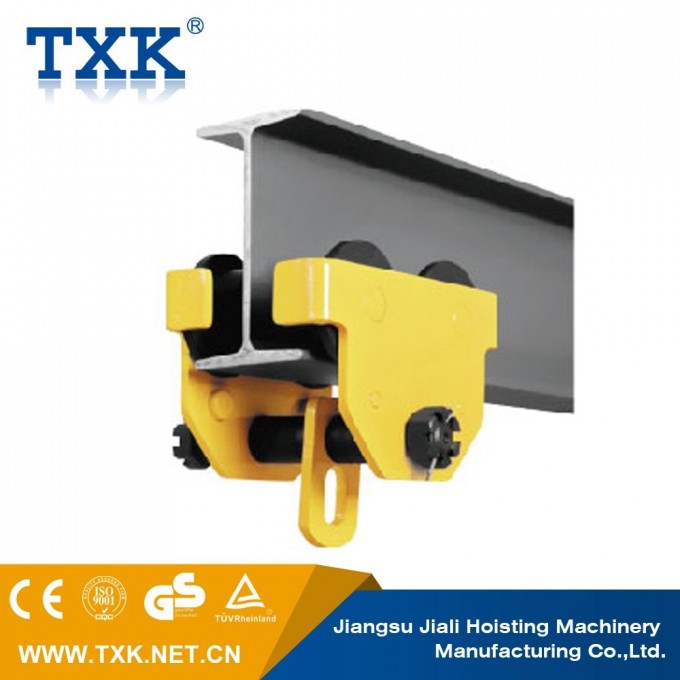

Manual Pulley, Plain trolley, Plain Crawl, Manual Crawl
Model&co
lon; PT10
Capacity(ton)&co
lon;10
Minimum radius of turn(m)&co
lon; 10
Net Weight (kg)&co
lon; 83
Designed to function on both flat and minor irregular beams surface like I-beam and H-beam
Easy installation and on-site operations
Dual tread iron wheels with high quality sealed ball bearing
Heavy rolled steel side plates with a universal hanging eye, can be coupled closely to most hoists.
Manual TrolleyManual Crawl Plain trolleyspecifications&co
lon;
PlainTrolley Technical Parameters
|
|
| Model | Capacity | I-Beam recommended B(mm) |
| N.W.(kg) |
| PT1 | 1.0 | 64-140 | 8.7 |
|
| PT2 | 2.0 | 76-165 | 10.4 |
|
| PT3 | 3.0 | 76-203 | 24 |
|
| PT5 | 5.0 | 88-203 | 36 |
|
| PT10 | 10.0 | 125-203 | 83 |
