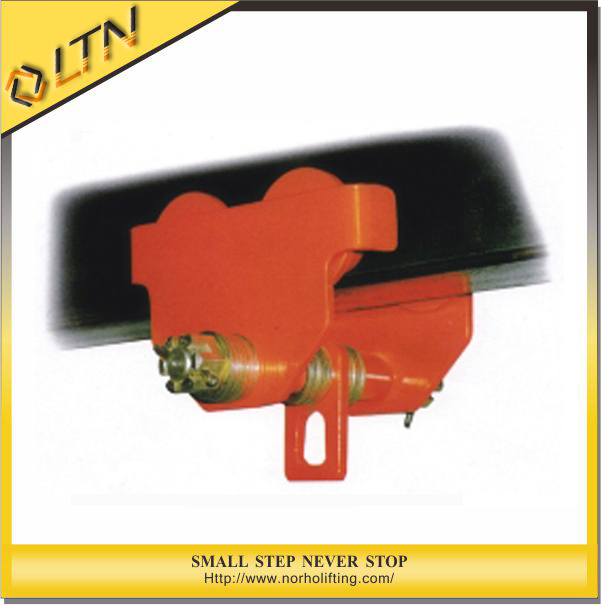

Reliable Quality Favorable Price Plain Trolley (PT-WA)

Reliable Quality Favorable Price Plain Trolley( PT-WA)

=========Product Description===========

01- Capacity:0.5T/1T/2T/3T/5T/10T

02- Color: yellow, other color is also available upon request

03- Nameplate: use NORHO or your own company

04- wide selection of beam width

05- high grade sealed ball bearing

06- easy adjustable

07- With fine adjustment and fittings to the beam, easily adjusted by the round nuts

08- Easily adjustable (round nuts) to fit a wide range of beam widths

09- Adjustable to fit a wide range of beam profiles

10- Excellent rolling features due to machined steel wheels mounted on p-lubricated,encapsulated ball bearings

11- Standard anti-tilt and anti-drop devices.

==========Specification Details===========

Model		PT-WA005	PT-WA010	PT-WA020	PT-WA030	PT-WA050	PT-WA100
Capacity(Kg)		0.5T	1T	2T	3T	5T	10T
RatedLoad(Kn)		6.25	12.5	25	37.5	62.5	125
I-BeamRecommended		64-152	64-203	88-203	102-203	114-203	125-203
NetWeight(Kg)		8.6	15.4	23	40	50	97
MinRadusofCurve(M)		0.9	1	1.1	1.3	1.4	1.7
Diamensions(MM)	A	264	335	353	371	393	436
	B	216	260	300	345	390	470
	C	195	239	286	336	393	500
	E	31	32.5	31	35	37	45
	K	110	136	161	185	220	280

==========Packaging & Delivery==========

Packaging Details: Standard Wooden Case or at Your Requirements

Delivery Detail: 25-30 Days after Received Deposit for Container Order

=============Our Services================

1- We can make special sample according to the customer's requirement.

2- We have more than 50 professional technical team, provide best after-sales service

3- Fast delivery time

4- We have CE, TUV and GS certification.

5- Test one by one.
