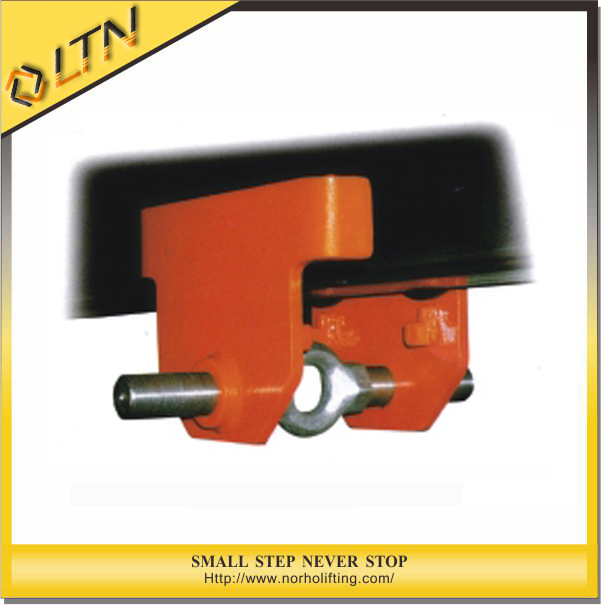

0.5-5 Ton High Quality Plain Trolley (PT-WB)

Production Description:
1. Capacity: 0.5T/1T/2T/3T/5T
2. Color: Yellow, other color is also available upon request
3. Nameplate: Use NORHO or your own company
4. Wide selection of beam width
5. High grade sealed ball bearing
6. Easy adjustable
7. With fine adjustment and fittings to the beam, easily adjusted by the round nuts
8. Easily adjustable (round nuts) to fit a wide range of beam widths
9. Adjustable to fit a wide range of beam profiles
10. Excellent rolling features due to machined steel wheels mounted on p-lubricated, encapsulated ball bearings
11. Standard anti-tilt and anti-drop devices

Capacity(Kg)		0.5T	1T	2T	3T	5T
RatedLoad(Kn)		6.25	12.5	25	37.5	62.5
I-BeamRecommended		50-220	58-220	66-220	74-220	90-220
NetWeight(Kg)		8.2	10.3	17.5	30.7	42.7
MinRadusofCurve(M)		0.9	1	1.1	1.3	1.4
Diamensions(MM)	A	292	300	310	324	329
	B	225	252	300	360	392
	C	173	188	226	289	313
	E	33	31	32	46	47
	K	25	30	40	48	60
	L	30	35	47	58	70

Our Services

1.We can make special sample according to the customer's requirement.
2. We have more than50 professional technical team, provide best after-sales service
3.Fastdelivery time
4. We have CE, TUV and GS certification.


Company information

As a wholly-owned subsidiary company of Hangzhou Norho Group Co., Ltd, Hangzhou Nuohao I/E Co., Ltd was found in 2013, Norho has specialised in the design, manufacture and supply of lifting and hoisting equipment.

After more than 10 years of development, today we are one of the leading companies in our field, we have 300 staffs for professional mature design team, quality control team, production management team and sales service team.

Norho Group can provide all of your lifting and material handling needs at highly competitive prices. With International ISO Approvals for its quality systems and CE, GS, TUV certification, Norho Group are proud to welcome you to our company and look forward to hearing from you.

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.



FAQ

1.TheMiniOrder?
Wecanacceptonlyonepiece.

2.aboutsample
Thebuyershouldofferthecostandfreight,ifthequantityisbigthencanturnbackallofitafterplacingtheorder

3.aboutpayment
100%TTasdeposite,ifamountmorethan5000usd.
or 30%TTasdeposite,balanceafterB/Lcopy

4.Howlongdoesittaketoreceivemyorder?
about25Daysfromwegetthedownpayment,10daysforsampleorder.

5.WhatistheinformationshouldIprovidewheninquiry?a.HowmanywillIwanttobuy?
b.Howmuchisthemaximumliftingweightofthehoist?
c.Howhighoftheliftheight?

6. How will my order shipped?
Usuallyshippedbysea,smallorderorurgetorderwecansendyoubyAirorDHL,UPSorFedex,afterreceivedyouragreement.
