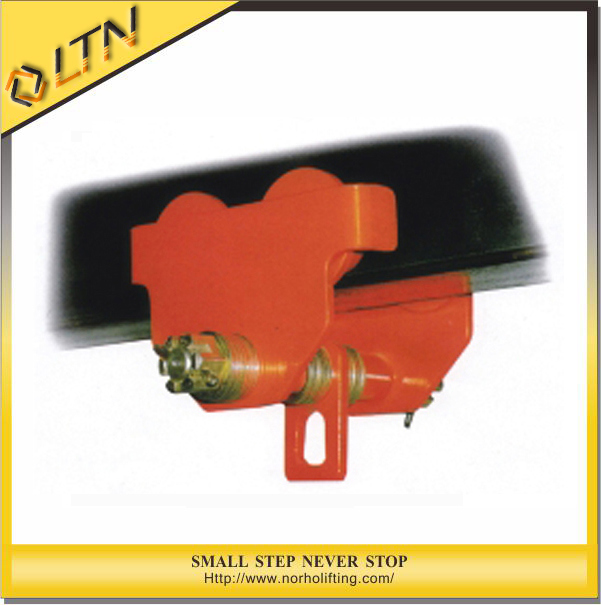

High Quality Plain Push Trolley (PT-WA)

Production Description:
1. Capacity: 0.5T/1T/2T/3T/5T/10T
2. Color: Yellow, other color is also available upon request
3. Nameplate: Use NORHO or your own company
4. Wide selection of beam width
5. High grade sealed ball bearing
6. Easy adjustable
7. With fine adjustment and fittings to the beam, easily adjusted by the round nuts
8. Easily adjustable (round nuts) to fit a wide range of beam widths
9. Adjustable to fit a wide range of beam profiles
10. Excellent rolling features due to machined steel wheels mounted on p-lubricated, encapsulated ball bearings
11. Standard anti-tilt and anti-drop devices

Capacity(Kg)		0.5T	1T	2T	3T	5T	10T
RatedLoad(Kn)		6.25	12.5	25	37.5	62.5	125
I-BeamRecommended		64-152	64-203	88-203	102-203	114-203	125-203
NetWeight(Kg)		8.6	15.4	23	40	50	97
MinRadusofCurve(M)		0.9	1	1.1	1.3	1.4	1.7
Diamensions(MM)	A	264	335	353	371	393	436
	B	216	260	300	345	390	470
	C	195	239	286	336	393	500
	E	31	32.5	31	35	37	45
	K	110	136	161	185	220	280
