Battery Powered Motorised Transfer Trolley (KPX-20)

Battery Powered Motorised Transfer Trolley (KPX-20)

Working principle:
This kind of Rail Transfer Heavy Load Mover is powered by battery in the cart. DC motor and gear reducer are controlled by DC control system to drive wheels and make the transport carriage start, stop, go forward and backward, speed up and slow down and so on.kpx flat carts can be used both on the "S"and arc-shaped railways.

Characters:
• KPX series are more safe and flexible.
• It has no strict requirement for the construction of the railway
• No limit of running distance
• Safe and convenient operation for there is no wire outside the car
• Adjustable speed

Suitable:
The Rail Transfer cart is suitable for various industries, steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc
from one location to another; Paper roll plant: transfer paper coil Painting shops: transfer workpiece into the painting room Sand blasting room Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc

Parameters:

Model		KPX-10	KPX-20	KPX-50	KPX-100	KPX-150
Rated Load(t)		10	20	50	100	150
TableSize(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	450	550	650	850	1200
Wheel base(mm)		1200	2800	3200	4900	7000
Rail Inner Gauge(mm)		1435	1435	1435	2000	2000
Wheel Diameter(mm)		400	400	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		25	20	20	20	18
Motor Power(kw)		2	2.5	5.5	11	15
Battery(v)		48	48	48	48	48
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Recommended Rail Model		P15	P24	P43	QU100	QU100

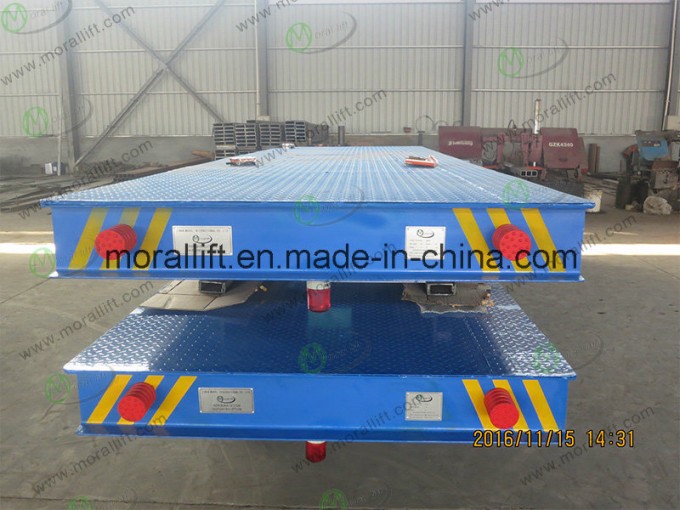

Production Show:


Company Information:
Welcome to Moral Lift China, we are professional manufacturer of TRANSFER CART with good quality and low price. Our promise: Quality First, Customer Above.

Pls telll me the platform size and load capacity you need, we can customize for you.
We are looking forward to establishing friendly relationship with you from all over the world.

Contact us!!
