Low Voltage Railway Goods Transfer Trolley

Low Voltage Railway Goods Transfer Trolley

Workingprinciple:

KPD seriesrailwayflatcartsarepoweredbythelowvoltageelectricityfromtherailways.Thepower sourceAC380vistransformedintoAC36vtwo-phaseandarerespectivelyconnectedtothetworails.
ThenthewheelsandconductingplateleadtheAC36velectricitytotheelectricalapplianceboxwhich
isinstalledonthecarts.AndthentheAC36vistransformedintoDC36Vthroughthetransformer.then
controlsDCmetallurgymotorthroughDCcontrolsystemtomaketheflatcartsstart,stop,goforwardandbackwardandadjustthespeedandsoon.

Characters:
1) poweredbylowvoltageelectricityfromrailways
2) usingtimeisnotlimited
3) loadcapacityisnotlimited
4) highsafetylevel
5) flexible,stablestart,bigstartingtorque,smallimpacttothegearreducer
6) highusefrequencyandnottooshortrunningdistance
7) longservicelife
8) runontherails"S",arc-shaped,directrunning
9) variablespeeddevice(VFD)
10) hydraulicliftingdevicecanbeinstalled
11) canbeusedfrequently

Parameters:

Model		KPD-10	KPD-20	KPD-50	KPD-100	KPD-150
RatedLoad(t)		10	20	50	100	150
TableSize(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	450	550	650	850	1200
Wheelbase(mm)		1200	2800	3200	4900	7000
RailInnerGauge(mm)		1435	1435	1435	2000	2000
WheelDiameter(mm)		400	400	500	600	600
WheelQuantity		4	4	4	4	8
GroundClearance(mm)		50	50	50	75	75
RunningSpeed(min)		25	20	20	20	18
MotorPower(kw)		2	2.5	5.5	11	15
Transformerpower(KVA)		3	6.8	10	30	30
Transformerquantity		1	1	1	1	1
Runningdistance(m)		80	80	50	50	50
MaxWheelLoad(KN)		14.4	77.7	174	343.8	265.2
RecommendedRailModel		P15	P24	P43	QU100	QU100

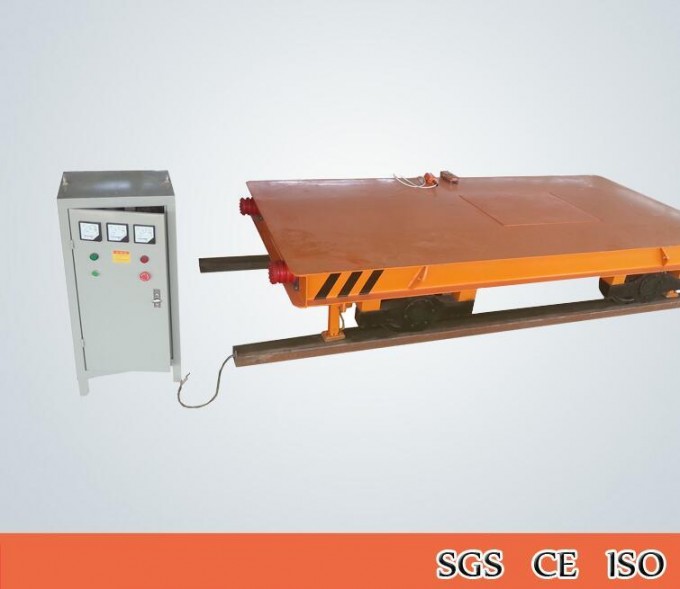

Pictures:
