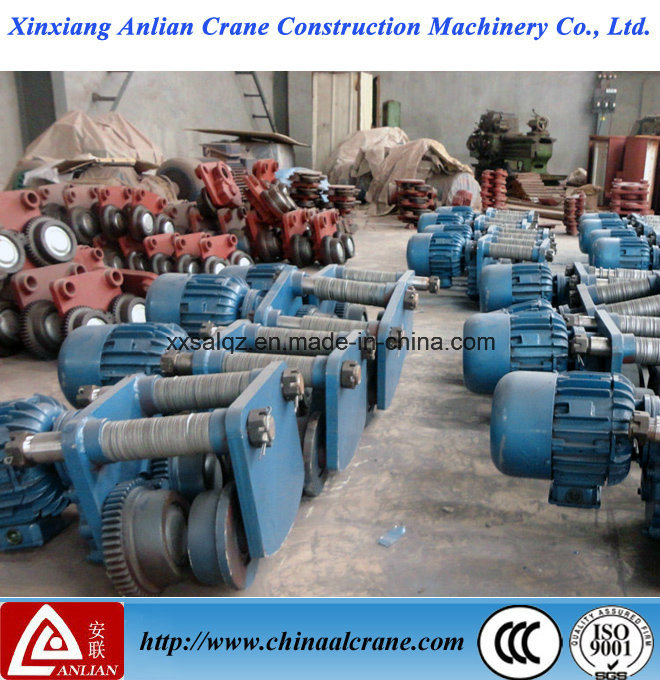

The Wire Rope Hoist Used Electric Trolley

Product despriction

This series electric hoist is designed and built to be anation-standardized light lifting equipment with two models CD1 and MD1, its rated work classification is M3. The CD1 type has only one lifting speed, the MD1 has two instead. Both CD1 and MD1 hoist features compact body, small size, light weight, and modular convertible parts. Proving to be durable, easy for operation, installation and maintenance, these wire rope models are ideal use for 3phase, light moderate duty service applications.

Model CD1/MD1 options include deck/base mount or lug suspended hoists, top-running or under-slung trolley /hoist configurations. The traveling configurations hoists usually can be installed separately on suspension I-steel runway (straight or curve) or box beam, aswell be incorporated into lifting system such as sing/double girder crane, cantilever crane, and gantry crane, and so on.

As akind of general lifting equipment, model CD1/MD1 electric is equipped with Upper/Lower limit protector to ensure safe operation. It is widely used in material handling and cargo transloading in factory, mine field, railway paving site, goods station and warehouse. When working in low-speed mode, the MD1 model hoist runs more smooth and accurately and fully meets accurate operation requirements in pcision assembly, mold spotting.

This series hoist can get avery large lifting height by simply modifying its design parameters, and it is also easy to be refitted and mounted on asupport deck or foundation to work as electric hoist winch.





Technical parameters

Type		CD1,MD1
Hoisting Capacity (t)		0.5	1	2	3	5	10	16
Hoisting Height (m)		6/9/12	6/9/12/18 /24/30	6/9/12/18 /24/30	6/9/12/18 /24/30	6/9/12/18 /24/30	9/12/18 /24/30	9/12/18 /24/30
Hoisting Speed(m/min)		8(0.8/8)	8(0.8/8)	8(0.8/8)	8(0.8/8)	8(0.8/8)	7(0.7/7)	3.5(0.35/3.5)
Travel speed(m/min)		20/30	20/30	20/30	20/30	20/30	20/30	20
Rope Dia(mm)		4.8	7.4	11	13	15	15	17.5
Hoisting Motor	Power(kw)	0.8(0.2/0.8)	1.5(0.2/1.5)	3.0(0.4/3.0)	4.5(0.4/4.5)	7.5(0.8/7.5)	13(1.5/13)	13(1.5/13)
	Rotation Speed (r/min)	1380	1380	1380	1380	1400	1400	1400
Travel Motor	Power(kw)	0.2	0.2	0.4	0.4	0.8	0.8*2	0.8*2
	Rotation Speed (r/min)	1380	1380	1380	1380	1380	1380	1380

Product detail

Reducer
Use three helical gear transmission mechanism, gears and gear shafts are made with heat-treated alloy steel; box and box cover are made of high quality cast iron, the assembly is tightly sealed. Reducer as aself-contained part that is convenient to loading and unloading.
Control box
Used in an emergency to cut off the main circuit, and with atrip up and down off the fire protection stopper device. To ensure the safe operation of electric hoist electrical components, long life, only reliable.
Wire Rope
Use GB1102-74 (6 *37 +1)-type lifting rope, which ensures durability.
Crane Motor
Lifting starting torque motor with alonger prototype rotor brake motor, no need to add brake. 25% duty cycle motor, motor with Bgrade or Fgrade insulation, electrical protection class IP44 or IP54.
Button switch
Hand type, light, flexible, and convenient, divided into rope operation and cordless remote control.

Company profile

Xinxiang Anlian Crane Construction Machinery Co., Ltd., the main business: Electric hoist, hoist, crane motors, conical motors, vibration motors, concrete vibrators and hoist accessories, which widely used in various fields of materials handling, such as machinery manufacturing, iron and steel metallurgy, mine mining, water conservancy and hydropower, road and rail, port logistics, shipbuilding and so on. Founded in 1993, after years of development, as awhole of development, design, manufacture, sale, installation and service, it has become the equipment manufacturing enterprises. Currently has aregistered capital of 10 million yuan, more than 200 employees, 20 engineers and technicians, covers an area of 24, 000 square meters, with all kinds of production equipment 90 (sets).


Our Services

1.Freelyprovideprojectdesigning,processdesigning,choosingsuitableequipmentforyou.

2.Accompanyyoutocompletetheacceptanceoftheequipment,drafttheconstructionschemeanddetailed

process,andcompleteprocessofexport

3.100% positive feedback

4. 12monthswarranty

5.Professionaltechniciansprovideinstallation,commissioningservices

6.Technicaladvisoryforanytime

FAQ

1.Q: Why we choose your product?

A:Rich experience:We have more than 10 years experience in this industry. Which means, we can pview the problems for the ordersand products.

Point to point service:There is one sale who will serve you from inquiry to products shipped out. Duringthe process, you just need to discuss with her for all problems and the way saves much time.

Strict QC:For each order, strict inspection will be carried out by the QC department before shipping. Thebad quality will be avoided within door.

Shipping:We have shipping department and forwarder, so we can promise faster delivery and make thegoods well protected.

2.Q:What'syourproductrange?

A:electrichoist,hoist,cranemotors,conicalmotors,vibrationmotors,concretevibratorsandhoistaccessories.etc

3.Q:WhatistheinformationshouldIprovidewheninquiry?

A:a.Which type of the products I need?

b.What is the quantity of the product I need?

c.FOB or CIF,and which port you want?

4.Q: What is the process for doing business with us ?

A:1.please provide details of the products you need and we will quote for you.

2. If price is acceptable and you need sample, we will provide Performa Invoice to arrange payment for sample and you should pay for the transportation freight and sample cost.

3. If you approve sample and require for bulk production for order, we will provide Performa Invoice foryou, and we will arrange to produce at once when we get 30% deposit.

4. We will send photos of all goods, packing, details, and B/L copy for you after goods are finished. We will arrange shipment and provide original B/L when the clients pay the balance.

5.Q:Which country have you exported?

A:wehave export Russia,Turkey, Malaysia, Vietnam and many other countries.
