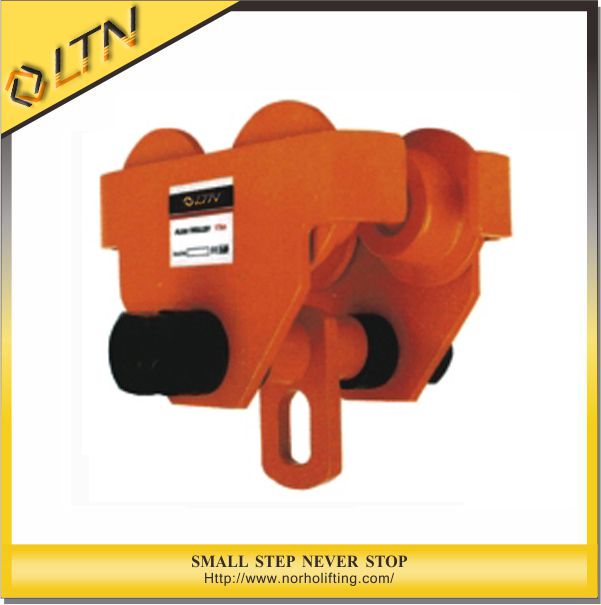

CE Approved High Quality Plain Hoist Trolley (PT-WD)

CE Approved High Quality Plain Hoist Trolley( PT-WD)

=========Product Description===========

01- Adjustable to any beam width, simply by adjusting the number of collars.

02- The wheels are made to fit any shape of beam

03- High grade sealed ball bearings.

04- With anti-drop plates.

05- For gear trolley, the standard operating length is 3m, other length is available upon request.

==========Specification Details===========

Model		PT-WD005	PT-WD010	PT-WD020	PT-WD030	PT-WD050	PT-WD100
Capacity(Kg)		0.5T	1T	2T	3T	5T	10T
RatedLoad(Kn)		6.25	12.5	25	37.5	62.5	125
I-BeamRecommended		68-126	80-146	80-168	88-168	100-180	122-203
NetWeight(Kg)		5.3	9.5	11.5	25.5	38	85
Diamensions(MM)	A	208	242	360	380	316	343
	B	200	216	300	345	345	395
	C	200	253	310	357	400	520
	H	150	170	180	190	210	220

==========Packaging & Delivery==========

Packaging Details: Standard Wooden Case or at Your Requirements

Delivery Detail: 25-30 Days after Received Deposit for Container Order

=============Our Services================

1- We can make special sample according to the customer's requirement.

2- We have more than 50 professional technical team, provide best after-sales service

3- Fast delivery time

4- We have CE, TUV and GS certification.

5- Test one by one.
