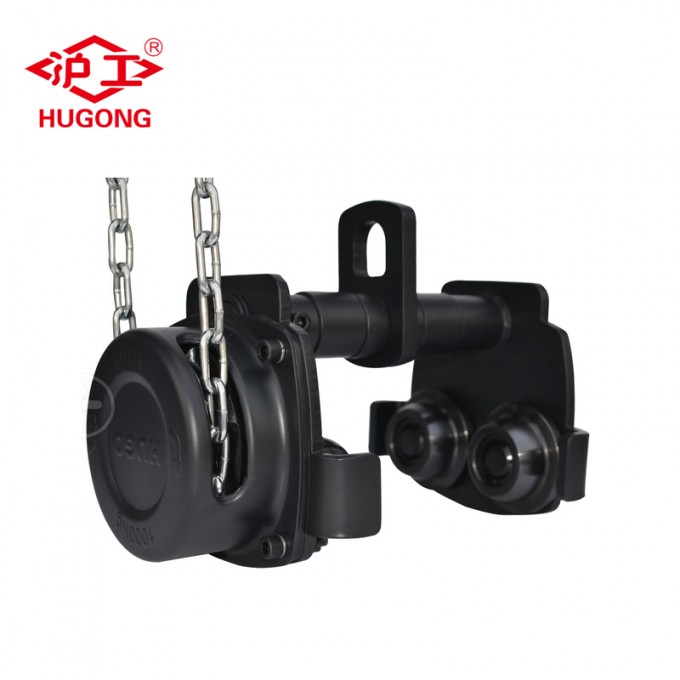

Hugo Brand Hand Lift Cable Beam Trolley

HUGO brand hand lift cable beam trolley



1. Introduction
Monorail trolley contains hand pull trolley and hand push trolley, pull trolley is driven by hand chain, and hand push trolley driven by pushing the lifting loads. It runs freely at the bottom flange of I beam, and distance between wheel flange can be adjusted according to the track width of I beam. A manual hoist traveling block can be formed by putting the chain block hangs under the trolley.


2. Features

Easy operate, simple structure, easy maintain
100% Test before loading

Model	Rated load (Ton)	Test (KG)	The Min curvature radius (M)	Main Size(MM)					I-Beam recommended(MM)
				A	B	C	H	F
GCL-JA0.5	0.5	0.64	1	208	172	190	108	3	75-100
GCL-JA1	1	14.71	1	220	206	222	122	3	75-100
GCL-JA2	2	29.42	1.1	260	240	267	132	3	90-140
GCL-JA3	3	44.13	1.3	285	279	319	181	3	100-150
GCL-JA5	5	61.29	1.4	338	318	384	219	3	125-175
GCL-JA10	10	122.58	1.7	362	380	490	275	3	125-180
