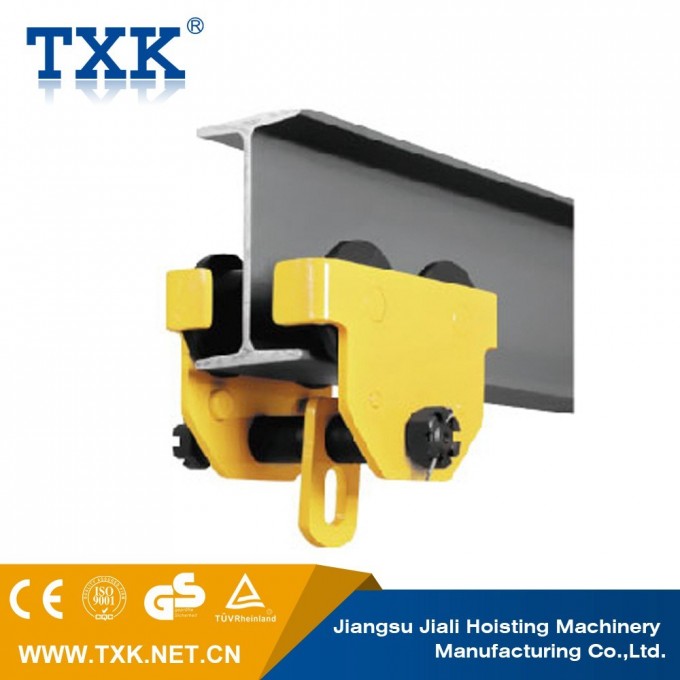

2 Ton Plain Trolley with Ce

Manual Pulley, Plain trolley, Plain Crawl, Manual Crawl
Model: PT-02
Capacity(ton): 2
Minimum radius of turn(m): 1
Net Weight (kg): 10.4

Designed to function on both flat and minor irregular beams surface like I-beam and H-beam
Easy installation and on-site operations
Dual tread iron wheels with high quality sealed ball bearing
Heavy rolled steel side plates with a universal hanging eye, can be coupled closely to most hoists.

Manual TrolleyManual Crawl Plain trolleyspecifications:

Manual Trolley Technical Parameters
Model	Capacity	I-Beam recommended A (mm)	I-Beam recommended B(mm)
				N.W.(kg)
PT0.5	0.5	75-125		6.9
PT1	1	80-146	64-140	8.7
PT2	2	80-168	76-165	10.4
PT3	3	88-168	76-203	24
PT5	5	100-170	88-203	36
PT10	10	122-203	125-203	83

What makes us different from others?

1. Production Capacity
*Over 96,000 square meters factory territory.
*Maximum daily capacity of new electric hoist can reach to 300 units.

2. Qualifications
*TXK is ISO9001:2008 cerfified company.
*Factory authorized by TUV Germany.
*CE & GS certificates for all products.

3. Marketing
*TXK is well soldin more than 60 countries.
*We serve over 2,000 companies in the world, include "500 Fortune Enterprises".
*Best price in Competitors of same products












FAQ
Q: What is MOQ?
A: MOQ can be 1 set

Q: How about your payment terms?
A: We accept T/T and L/C at sight

Q: What is the sample policy?
A: We can send you 1pcs sample for your test, but you need to pay the fees

Q: What is your after sales service?
A: We have engineers to fix any problem about TXK Hoists sold overseas.

Q: What about warranty?
A: We supply 1 year warranty for electric part and 2 years for mechanical part.

Q: Do you support OEM service?
A: Yes
