Detailed Description
Manual Pulley, Geared trolley, Manual Crawl
Model&co
lon; ATG0.5
Capacity(ton)&co
lon; 0.5
Minimum radius of turn(m)&co
lon; 1
Net Weight (kg)&co
lon; 10
Designed to function on both flat and minor irregular beams surface like I-beam and H-beam
Easy installation and on-site operations
Dual tread iron wheels with high quality sealed ball bearing
Heavy rolled steel side plates with a universal hanging eye, can be coupled closely to most hoists.
Manual TrolleyManual Crawl Geared trolleyspecifications&co
lon;
Manual Trolley Technical Parameters |
|
| Model | Capacity | I-Beam recommended (mm) |
| N.W.(kg) |
| ATG0.5 | 0.5 | 75-125 | 10 |
| ATG1 | 1 | 80-146 | 14 |
|
| ATG2 | 2 | 80-168 | 16 |
|
| ATG3 | 3 | 88-168 | 24 |
|
| ATG5 | 5 | 125-175 | 36 |
|

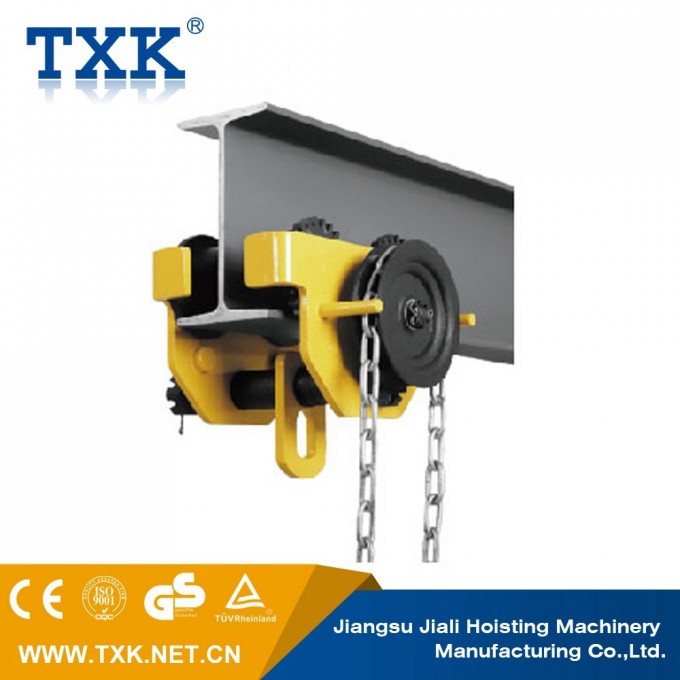

Product Image
