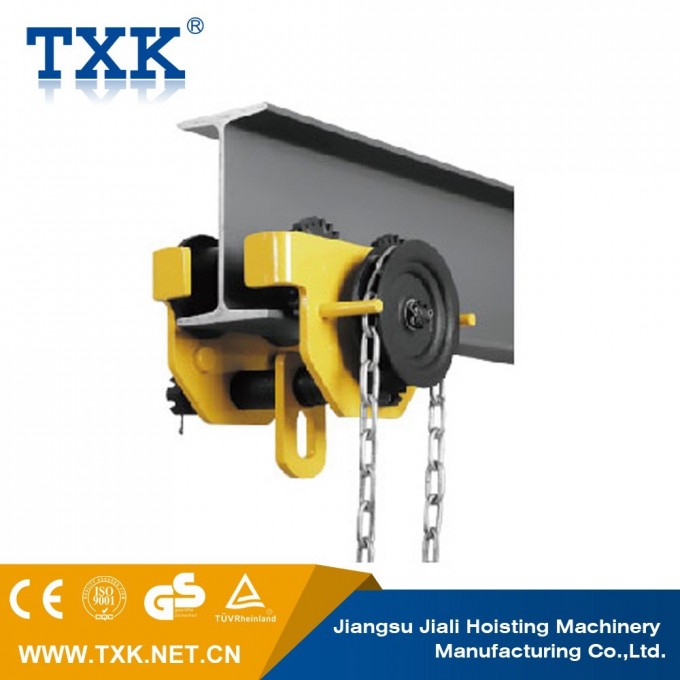

3 Ton High Strength Geared Trolley with Ce

3 Ton High Strength Geared Trolley with Ce

Manual Pulley, Geared trolley, Manual Crawl
Model: ATG3
Capacity(ton): 3
Minimum radius of turn(m): 1
Net Weight (kg): 24

Designed to function on both flat and minor irregular beams surface like I-beam and H-beam
Easy installation and on-site operations
Dual tread iron wheels with high quality sealed ball bearing
Heavy rolled steel side plates with a universal hanging eye, can be coupled closely to most hoists.

Manual TrolleyManual Crawl Geared trolleyspecifications:

Manual Trolley Technical Parameters
Model	Capacity	I-Beam recommended (mm)
			N.W.(kg)
ATG0.5	0.5	75-125	10
ATG1	1	80-146	14
ATG2	2	80-168	16
ATG3	3	88-168	24
ATG5	5	125-175	36

FAQ
1.aboutafter-saleservice:
WehaveengineerstofixanyproblemforTXKhoistssoldoverseas,andwesupplyfreesparepartswithinwarranty

2.aboutquality:
Beforepacking,allthehoistswillbeinspectedcarefully.Andwetakedetailedpicturesandmakerecordsforeachsingleproduct.Withourserialno.youwilltrackthedetailsabouttheproducts.

3.Whatistherangecapacityofyourhoists?
From0.25 tonto50ton.

4.aboutprice:
Priceisnegotiablewithlargeorderquantities.

5.aboutwarranty:
Weoffer1yearwarrantyforelectricparts,and2yearsformechanicalparts.

6.aboutsamples:
Available.

7.OEM
Available.
