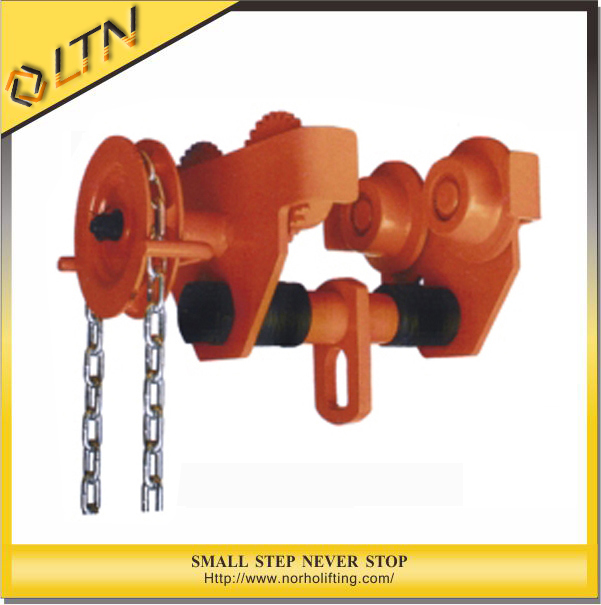

Top Ranking Gear Trolley (GT-WA)

Product Details

Basic Info.Model NO.:GT-WACapacity:0.5ton to 20onCondition:NewCertificateion:CE, ISO9000:2001Type:Geared TrolleySling Type:ChainExport Markets:Global

Additional Info.Trademark:LTN, NorHo Or OEMPacking:Carton Packing or Wooden Pallet PackingStandard:CE GS and TUVOrigin:Hangzhou ChinaHS Code:8428909090Production Capacity:5000sets/Month

Product DescriptionProduction Description:
1. Capacity: 0.5T/1T/2T/3T/5T/10T/20T
2. Color: Orange, other color is also available upon request
3. Nameplate: Use NORHO or your own company
4. Wide selection of beam width
5. High grade sealed ball bearing
6. Easy adjustable
7. With fine adjustment and fittings to the beam, easily adjusted by the round nuts
8. Easily adjustable (round nuts) to fit a wide range of beam widths
9. Adjustable to fit a wide range of beam profiles
10. Excellent rolling features due to machined steel wheels mounted on p-lubricated, encapsulated ball bearings11. Standard anti-tilt and anti-drop devices

Capacity(Kg)		0.5T	1T	2T	3T	5T	10T	20T
RatedLoad(Kn)		6.25	12.5	25	37.5	62.5	125	250
I-BeamRecommended		68-126	80-146	80-168	88-168	100-180	122-203	122-203
NetWeight(Kg)		8	11.8	14.5	27.6	40.2	86	220
Diamensions(MM)	A	283	317	360	380	400	443	465
	B	200	216	260	300	345	395	630
	C	200	253	310	357	400	520	568
	H	150	170	180	180	210	220	290

Our Services
1.Wecanmakespecialsampleaccordingtothecustomer'srequirement.
2.Wehavemorethan50professionaltechnicalteam,providebestafter-salesservice
3.Fastdeliverytime
4.WehaveCE,TUVandGScertification.
5.24-hours online service
FAQ
1.The MiniOrder?
Wecanacceptonlyonepiece.

2.about sample
Thebuyershouldofferthecostandfreight,ifthequantityisbigthencanturnbackallofitafterplacingtheorder

3.about payment
100%TTasdeposite,ifamountmorethan5000usd,30%TTasdeposite,balanceafterB/Lcopy

4.Howlongdoesittaketoreceivemyorder?
about25Daysfromwegetthedownpayment,10daysforsampleorder.

5.WhatistheinformationshouldIprovidewheninquiry?
a.HowmanywillIwanttobuy?
b.Howmuchisthemaximumliftingweightofthehoist?
c.Howhighoftheliftheight?
