Detailed Description

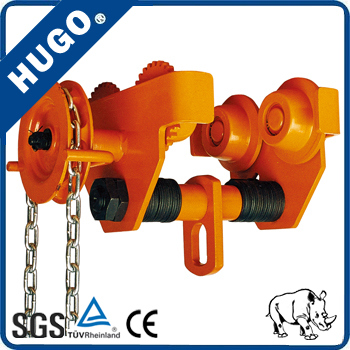

The introduction of Series of 1T Manual Chain Hoist trolley, Made in China
1. Heavy duty trolleys designed for flexibility of installation.
2. Usable on straight or curved track.
3. Easy adjustment to the size of the steel beam using crank;
4. Simply remove end nut and adjust spacers.
5. Can be installed or removed from any point in the track.
6. Movement is achieved through pushing
7. Rated load&co
lon; 0.5T - 10T
| The Parameters ofSeries of Series of 1T Manual Chain Hoist trolley, Made in China |
| Model | Rated load(T) | Test(KG) | The Min curvature radius(M) | Main Size(MM) | I-Beam recommended(MM) |
| A | B | C | H | F |
| GCL-JA0.5 | 0.5 | 0.64 | 1 | 208 | 172 | 190 | 108 | 3 | 75-100 |
| GCL-JA1 | 1 | 14.71 | 1 | 220 | 206 | 222 | 122 | 3 | 75-100 |
| GCL-JA2 | 2 | 29.42 | 1.1 | 260 | 240 | 267 | 132 | 3 | 90-140 |
| GCL-JA3 | 3 | 44.13 | 1.3 | 285 | 279 | 319 | 181 | 3 | 100-150 |
| GCL-JA5 | 5 | 61.29 | 1.4 | 338 | 318 | 384 | 219 | 3 | 125-175 |
| GCL-JA10 | 10 | 122.58 | 1.7 | 362 | 380 | 490 | 275 | 3 | 125-180 |
