Detailed Description
The introduction of Manual GCL Trolley without Chain, Easy Moving Machine
1. Heavy duty trolleys designed for flexibility of installation.
2. Usable on straight or curved track.
3. Easy adjustment to the size of the steel beam using crank;
4. Simply remove end nut and adjust spacers.
5. Can be installed or removed from any point in the track.
6. Movement is achieved through pushing
7. Rated load&co
lon; 0.5T - 10T
| The Parameters ofSeries of Manual GCL Trolley without Chain, Easy Moving Machine |
| Model | Rated load(T) | Test(KG) | The Min curvature radius(M) | Main Size(MM) | I-Beam recommended(MM) |
| A | B | C | H | F |
| GCL-JA0.5 | 0.5 | 0.64 | 1 | 208 | 172 | 190 | 108 | 3 | 75-100 |
| GCL-JA1 | 1 | 14.71 | 1 | 220 | 206 | 222 | 122 | 3 | 75-100 |
| GCL-JA2 | 2 | 29.42 | 1.1 | 260 | 240 | 267 | 132 | 3 | 90-140 |
| GCL-JA3 | 3 | 44.13 | 1.3 | 285 | 279 | 319 | 181 | 3 | 100-150 |
| GCL-JA5 | 5 | 61.29 | 1.4 | 338 | 318 | 384 | 219 | 3 | 125-175 |
| GCL-JA10 | 10 | 122.58 | 1.7 | 362 | 380 | 490 | 275 | 3 | 125-180 |

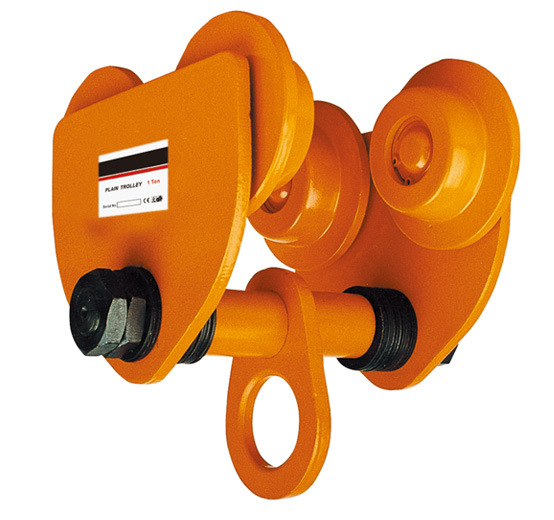

Product Image
