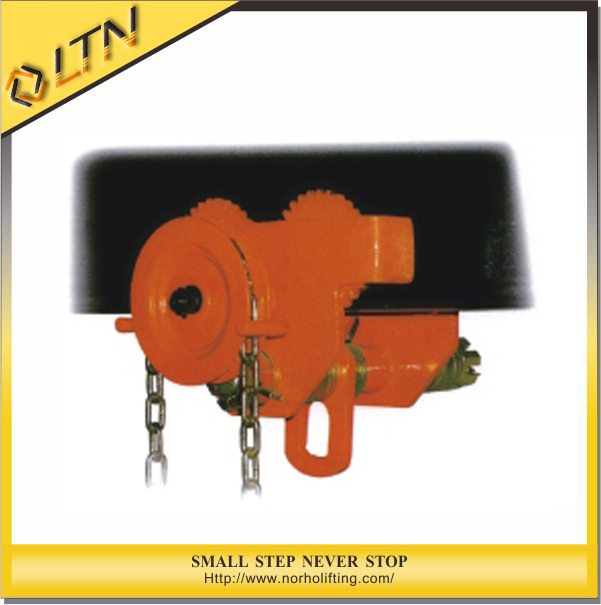

China Brand Gear Trolley 1t-10t

Capacity: from 0.5T to 10T
Color: yellow painted or as your requst
Adjustable to any beam width, simply by adjusting the number of collars.
The wheels are made to fit any shape of beam
High grade sealed ball bearings.
With anti-drop plates.
For gear trolley, the standard operating length is 3m, other length is available upon request.
An ISO 9001 certified firm by Lloyd's Register and a member of LEEA(Lifting Equipment Engineers Association).

Capacity(Kg)		1T	2T	3T	5T	10T
RatedLoad(Kn)		12.5	25	37.5	62.5	125
I-BeamRecommended		64-203	88-203	102-203	114-203	125-203
NetWeight(Kg)		19.9	28.5	46	57	103
MinRadusofCurve(M)		1	1.1	1.3	1.4	1.7
RunningHeight(M)		3	3	3	3	3
ChainPulltoLiftFullLoad		44	80	65	90	195
Diamensions(MM)	A	390	400	430	444	489
	B	260	300	345	390	470
	C	239	286	336	393	500
	E	32.5	31	35	37	45

Our Services

1.We can make special sample according to the customer's requirement.
2. We have more than50 professional technical team, provide best after-sales service
3.Fastdelivery time
4. We have CE, TUV and GS certification.
FAQ


1.TheMiniOrder?
Wecanacceptonlyonepiece.

2.aboutsample
Thebuyershouldofferthecostandfreight,ifthequantityisbigthencanturnbackallofitafterplacingtheorder

3.aboutpayment
100%TTasdeposite,ifamountmorethan5000usd.
or 30%TTasdeposite,balanceafterB/Lcopy

4.Howlongdoesittaketoreceivemyorder?
about25Daysfromwegetthedownpayment,10daysforsampleorder.

5.WhatistheinformationshouldIprovidewheninquiry?a.HowmanywillIwanttobuy?
b.Howmuchisthemaximumliftingweightofthehoist?
c.Howhighoftheliftheight?

6. How will my order shipped?
Usuallyshippedbysea,smallorderorurgetorderwecansendyoubyAirorDHL,UPSorFedex,afterreceivedyouragreement.
