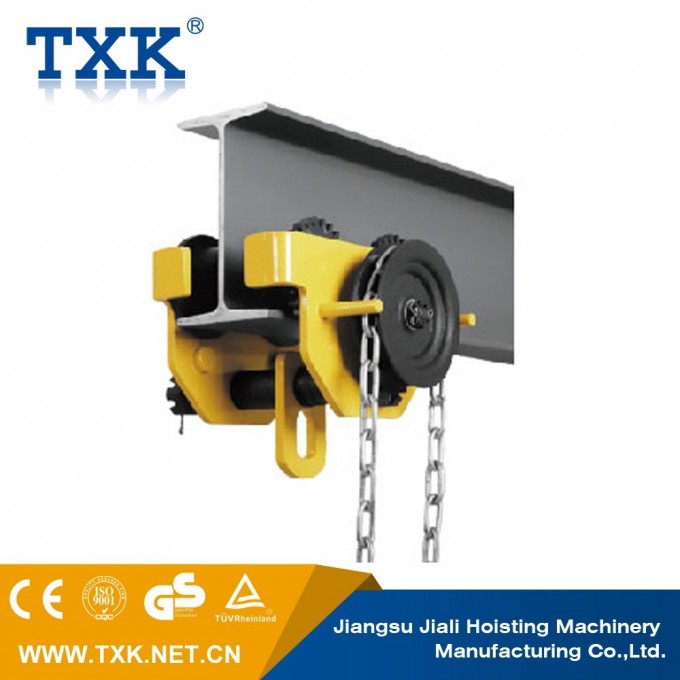

5 Ton Geared Trolley with Ce

Manual Pulley, Geared trolley, Manual Crawl
Model: GT-05
Capacity(ton): 5
Minimum radius of turn(m): 1
Net Weight (kg): 36

Designed to function on both flat and minor irregular beams surface like I-beam and H-beam
Easy installation and on-site operations
Dual tread iron wheels with high quality sealed ball bearing
Heavy rolled steel side plates with a universal hanging eye, can be coupled closely to most hoists.

Manual TrolleyManual Crawl Geared trolleyspecifications :

Manual Trolley Technical Parameters
Model	Capacity	I-Beam recommended A (mm)	I-Beam recommended B(mm)
				N.W.(kg)
GT0.5	0.5	75-125		10
GT1	1	80-146	64-140	14
GT2	2	80-168	76-165	16
GT3	3	88-168	76-203	24
GT5	5	100-170	88-203	36
GT10	10	122-203	125-203	90

TXK was founded in 1997 with 1.5 million USD registered fund in the very beginning and grow up as a leading manufacturer of electric chain hoist, manual chain hoist, electric wire rope hoist and various lifting and material handling equipments with more than 15 years experience and hard work.

Our factory cover an area of 66000 square meters, the biggest workshop in the electric hoist industry in China.

We provide quality, safe and stable products to meet the highest industrial standards. We are ISO9001: 2008 and TUV certified manufacturer, our products are CE, GS, SGS certified, serving all spheres of industry in the world.

Our products are widely used in industry and manufacturing industry and other special purpose, such as mold, wind power, logistics, railway, shipbuilding, bridge construction, factory assembly line, mechanical maintenance platform etc.

The company establishes a global marketing network with exportation to Germany, Norway, Poland, United States, Canada, Mexico, Peru, Brazil, Argentina, Egypt, Saudi Arabia, South Africa, India, Indonesia, Malaysia and total more than 50 countries and regions.













FAQ
Q: What is MOQ?
A: MOQ can be 1 set

Q: How about your payment terms?
A: We accept T/T and L/C at sight

Q: What is the sample policy?
A: We can send you 1pcs sample for your test, but you need to pay the fees

Q: What is your after sales service?
A: We have engineers to fix any problem about TXK Hoists sold overseas.

Q: What about warranty?
A: We supply 1 year warranty for electric part and 2 years for mechanical part.
