Heavy Load Battery Cart Transfer

Heavy Load Battery Cart Transfer

This kind of Rail Transfer Heavy Load Mover is powered by battery in the cart. DC motor and gear reducer are controlled by DC control system to drive wheels and make the transport carriage start, stop, go forward and backward, speed up and slow down and so on. kpx flat carts can be used both on the "S"and arc-shaped railways.kpw flat carts can be used on anywhere, there is no need of rail.




CHARACTERS
• KPX /KPW series are very safe and flexible.
• It has no strict requirement for the construction of the railway
• No limit of running distance
• Safe and convenient operation for there is no wire outside the car
• Adjustable speed

SUITABLE
The Rail Transfer cart is suitable for various industries, steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc
from one location to another; Paper roll plant: transfer paper coil Painting shops: transfer workpiece into the painting room Sand blasting room Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc

PARAMETERS

Model		KPX(W)-10	KPX(W)-20	KPX(W)-50	KPX(W)-100	KPX(W)-150
Rated Load(t)		10	20	50	100	150
TableSize(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	450	550	650	850	1200
Wheel base(mm)		1200	2800	3200	4900	7000
Rail Inner Gauge(mm)		1435	1435	1435	2000	2000
Wheel Diameter(mm)		400	400	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		25	20	20	20	18
Motor Power(kw)		2	2.5	5.5	11	15
Battery(v)		48	48	48	48	48
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Recommended Rail Model		P15	P24	P43	QU100	QU100

PRODUCT SHOW

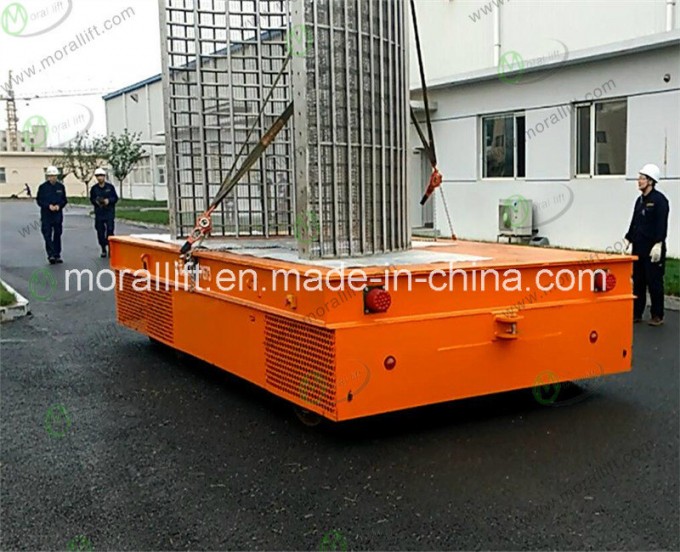

KPX(with rails)


KPW(without rails)




AFTER SALES
1. User-friendly English manual for machine installation using and maintenance.
2. One year warranty for whole machine without man-made fault;
3. We will send you parts for free if there are any non-human factors problem during warranty time
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and holiday, engineers are available to your country if necessary.

OUR SERVICE
1. All the machines will b full tested before shipment.
2. The total machine guarantee for 12 months.
3. 24 hours technical support-email, telephone or video online.
4. User-friendly English manual for machine using and maintaining.
5. Several sets wearing parts will be free for you.

COMPANY INFO
Welcome to Moral Lift China, we are professional manufacturer of TRANSFER CART with good quality and low price. Our promise: Quality First, Customer Above. we have CE certification, we promise the best quality! we can customize for your every inquiry!

WHY CHOOSE US
1.Professional design drawing for the confirmation in case of any misunderstanding.
2.AllproductswillbeproducedstrictlyaccordingtoCEqualitymanagementsystem.
3.Every lead rail lift must be tested before delivery,100% qualified.
4.Detailed rust-removing and powder painting process.
5.5 years warranty for main structure and 1 year warranty for electrical parts.




FAQ
1. MOQ?-1 set
2. Delivery time?-usually within 15-20 working days upon receipt of payment.
4. Trade term? ( FOB/CFR/CIF to your nearest seaport)
5. Working Height?-according to your need
6. Platform Size?-according to your need
7. load capacity?-according to your need
8. Demand power source?-electric or battery, per your need
9. OEM?-accepted

YOU MAY LIKE


BUYING TIP
If you are interested in our products, transfer cart, please provide the following parameters:

1.Load capacity (kg)
2.Platform size (mm)

Thebest price will be provided once the above /confirm/ied!!!

We are looking forward to establishing friendly relationship with you from all over the world.
