Detailed Description

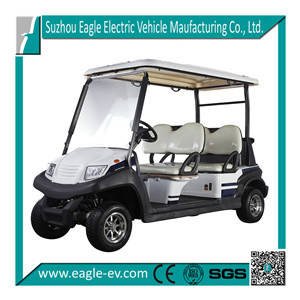

EG204AK was launched in August of 2014, it's a luxury golf cart.Many features make it to be a luxury golf cart, such as aluminum chassis and roof support,front double-arm independent suspension,rear taper leaf spring with shock absorber,LED taillights and front position light,EM brake, digital meter, etc.. EG204AK is a luxury golf cart for your VIP guests!
| Item | Description |
| Controller | Curtis controller, 275A-400A, imported from USA directly |
| Motor | Rated 3KW-5KW (4.08HP-6.8HP), ADC brand or Chinese brand
Both DC motor and AC motor are available |
| Battery | Trojan battery, T875, imported from USA directly |
| Charger | High Frequency onboard charger
(input 90V-265V, 47-63HZ, output 48V/22A) |
Performance
| Item | Description |
| Passenger Capacity | 4 |
| Range (loaded) (km)* | up to 70 |
| Max. speed (km/h) | up to 40 |
| Min. turning radius (m) | 4.5 |
| Max. climbing ability(loaded) | up to 20% |
| Max. movement after brake at speed of 20km/h | ≤ 4m |
| Max. loading weight (kgs) | 370 |
| Charging time (hour) | 8-10 |
| Battery lifespan (cycles) | 750 |
* 1) ba
sed on the test conditions: 20km/h speed, flat and straight co
ncrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions
| Item | Description |
| Overall dimensions (mm) | 3160x1180x1980 (LxWxH) |
| Min. ground clearance (mm) | 120 |
| Wheelbase (mm) | 2430 |
| Front wheel tread (mm) | 960 |
| Rear wheel tread (mm) | 980 |
Body and f
rame
| Item | Description |
| frame & Chassis | Aluminum alloy beam, bended |
| Body | PP plastic front and rear body cover, injected |
| Roof | Plastic |
| Windshield | One-piece organic glass (PMMA) |
| Roof supports | Aluminum with black powder coating |
| Cushion | Reborn sponge with artificial leather and plastic bottom cover |
| Backrest | Reborn sponge with artificial leather and plastic cover |
| Armrest | Plastic, black texture finish |
| Floor mat | Skidproof rubber |
| Centre sweater basket | Plastic, large volume |
| Golf bag holder | Plastic support with nylon strap |
| Dashboard | Black plastic, with F/R switch, battery power indicator, ignition key on it |
| Beverage holders | 4 cups holders, 2 each side |
| Side trim | Plastic, black |
| Score card holder | On the steering wheel |
Electric System
| Item | Description |
| Lights | 12V, headlight (with hight/low beam), front turning light,
LED front position light,
LED taillights (includes brake lights and turning light), |
| Horn | Electric horn, 12V |
| Reverse buzzer | Electric, 12V |
| Combination switch | |
| DC/DC converter | 48V/12V |
| Digital Meter (optional) | Including speedomter, mileage, various indicators including:
headlight indicator, turning light indicator, parking indicator,
emergency light indicator, reverse indicator |
Steering & suspersion
| Item | Description |
| Steering System | Single-stage rack and pinion steering system,
with automatic compensation function |
| Brake System | Rear wheel mechanical brake with hand park brake |
| Accelerator | Holzer type, stepless speed change |
| Front suspension | Double-arm, independent suspension |
| Rear suspension | Taper leaf spring with hydraulic cylinder shock absorber |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Aluminum differential cage, integrated, 12.76: 1 gear ratio |
| Wheel & Tyre | 10x6 Alumimum wheel & 205/50-10 4PR |
Product Image
