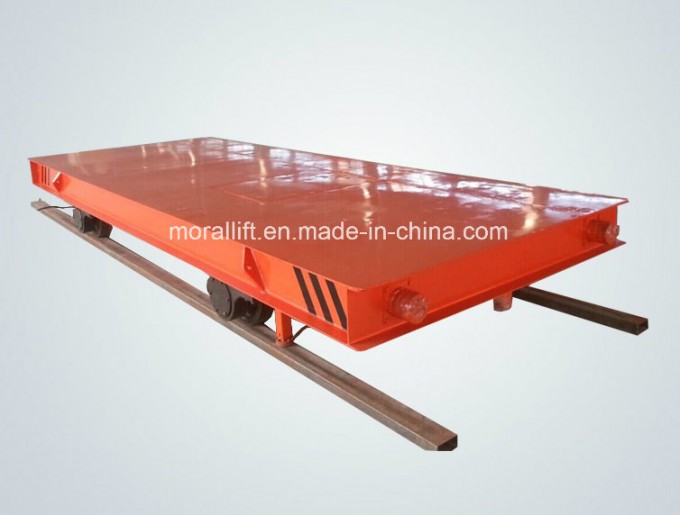

Steel Mill Transfer Trolley On Rails(KPX)

Steel Mill Transfer Trolley On Rails(KPX)


Product description:

1.KPX railway battery flat car is powered by the storage battery. It is a kind of transport vehicles indoor.The batteries supply electricity to the DC motor through the electrical control system. Then the reducer drives the wheels of the flat carts start, stop, go forward and backward, and the speed can be adjusted at the same time. The professional charger can give electricity to the battery when the battery is no power.

2.KPX series battery railway flat car the DC rechargeable battery. It has many characteristics, such as simple structure, easy operation, carrying capacity and so on. Besides, it can be used in special occasions without power and transport for long distance.

3.This series car can be widely used in machinery factories, warehouses and metallurgical plants as a workshop transport or with the crane transport heavy loads over cross.

4. It mainly includes car frame, brushless DC motor, reducer, wheel, storage battery, charger, etc.It also can be used in the ferry condition and flammable, explosive environment and the hydraulic lifting device can be installed on the flat carts. This kind of heavy duty electric flat car for shipbuilding is suitable to be used in the long running distance transportation and low using frequency


Technicalparameter:

Model	KPX-50
RatedLoad(t)	50Ton
TableSize(mm)	3600*2000*500
Wheelbase(mm)	2600
RailGauge(mm)	1435
WheelDiameter(mm)	300
WheelQuantity	4
GroundClearance(mm)	50
RunningSpeed(m/min)	0-25
MotorPower	1.6
BatteryCapacity(Ah)	160
BatteryVoltage(V)	48
RunningTimeWhenFullLoad	4.8
RunningDistanceforOneCharge(Km)	7.2
MaxWheelLoad(KN)	42.6
ReferenceWeight(t)	4.2
RecommendedRailModel	P18
