Detailed Description
Professio
nal Hand Trucks
Model&co
lon; A series
The design, materials and specifications are subject to change for improvements without notice.
| Habde type | Model | Capacity | Overall | Noseplate | Wheels | Tubular stair climber | Net height |
| Height | Width | Deep *width | Type | Dia*w |
| Ibs | inch | inch | inch | Ibs |

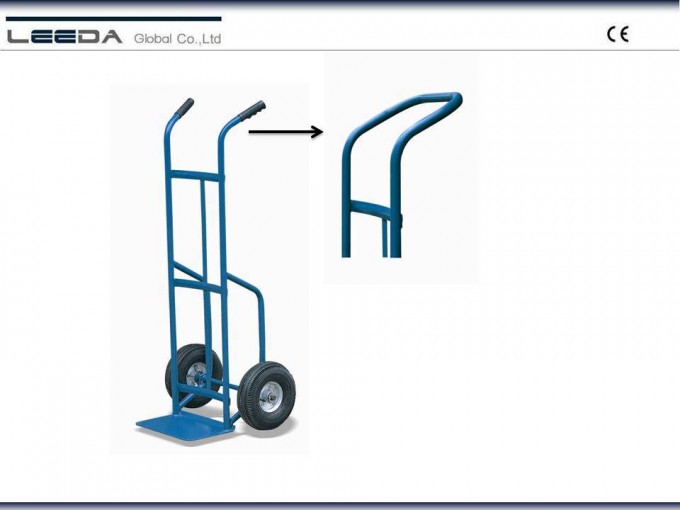

| A. Flow back handle |
| A550-1 | 650 | 49 | 19.5 | 8*14 | 1 | 10*2.5 | Yes | 33 |
| A550-2 | 550 | 49 | 21.1 | 8*14 | 2 | 10*3.5 | Yes | 32.1 |
| A550-3 | 550 | 49 | 21.1 | 8*14 | 3 | 10*3.5 | Yes | 30.8 |
| A550-4 | 550 | 49 | 19.5 | 8*14 | 4 | 10*2.5 | Yes | 35.2 |
| A550-5 | 500 | 49 | 19 | 8*14 | 5 | 8*2 | No | 33 |
| B. Dual handle |
| B550-1 | 650 | 48.5 | 19.5 | 8*14 | 1 | 10*2.5 | Yes | 32.5 |
| B550-2 | 550 | 48.5 | 21.1 | 8*14 | 2 | 10*3.5 | Yes | 35.2 |
| B550-3 | 550 | 48.5 | 21.1 | 8*14 | 3 | 10*3.5 | Yes | 33 |
| B550-4 | 550 | 48.5 | 19.5 | 8*14 | 4 | 10*2.5 | Yes | 34.8 |
| B550-5 | 500 | 48.5 | 19 | 8*14 | 5 | 8*2 | No | 32.5 |
| C. Dual pin handle |
| C550-1 | 650 | 50.5 | 19.5 | 8*14 | 1 | 10*2.5 | Yes | 35.2 |
| C550-2 | 550 | 50.5 | 21.1 | 8*14 | 2 | 10*3.5 | Yes | 37.4 |
| C550-3 | 550 | 50.5 | 21.1 | 8*14 | 3 | 10*3.5 | Yes | 35.2 |
| C550-4 | 550 | 50.5 | 19.5 | 8*14 | 4 | 10*2.5 | Yes | 34.3 |
| C550-5 | 500 | 50.5 | 19 | 8*14 | 5 | 8*2 | No | 33 |
| D. Loop handle |
| D550-1 | 650 | 50.5 | 21.5 | 8*14 | 1 | 10*2.5 | Yes | 32.5 |
| D550-2 | 550 | 50.5 | 21.1 | 8*14 | 2 | 10*3.5 | Yes | 33.8 |
| D550-3 | 550 | 50.5 | 21.1 | 8*14 | 3 | 10*3.5 | Yes | 32.5 |
| D550-4 | 550 | 50.5 | 19.5 | 8*14 | 4 | 10*2.5 | Yes | 37 |
| D550-5 | 500 | 50.5 | 19 | 8*14 | 5 | 8*2 | No | 34.5 |
| E. Pin hanle |
| E650-1 | 650 | 45.5 | 19.5 | 8*14 | 1 | 10*2.5 | Yes | 32.5 |
| E550-2 | 550 | 45.5 | 21.1 | 8*14 | 2 | 10*3.5 | Yes | 35.2 |
| E550-3 | 550 | 45.5 | 21.1 | 8*14 | 3 | 10*3.5 | Yes | 33 |
| E550-4 | 550 | 45.5 | 19.5 | 8*14 | 4 | 10*2.5 | Yes | 34.7 |
| E550-5 | 500 | 45.5 | 19 | 8*14 | 5 | 8*2 | No | 32.5 |
Product Image
