TXKwas founded in1997with 1.5 million USD registered fund in the very beginning and grow up as a leading manufacturer of electric chain hoist, manual chain hoist, electric wire rope hoist and various lifting and material handling equipments with more than15years experience and hard work.
Our factory cover an area of 66000 square meters, the biggest workshop in the electric hoist industry in China.
We provide quality, safe and stable products to meet the highest industrial standards. We areISO9001&co
lon; 2008andTUVcertified manufacturer, our products areCE, GS, SGScertified, serving all spheres of industry in the world.
Our products are widely used in industry and manufacturing industry and other special purpose, such as mold, wind power, logistics, railway, shipbuilding, bridge construction, factory assembly line, mechanical maintenance platform etc.
The company establishes a global marketing network with exportation to Germany, Norway, Poland, United States, Canada, Mexico, Peru, Brazil, Argentina, Egypt, Saudi Arabia, South Africa, India, Indonesia, Malaysia and total more than50countries and regions.

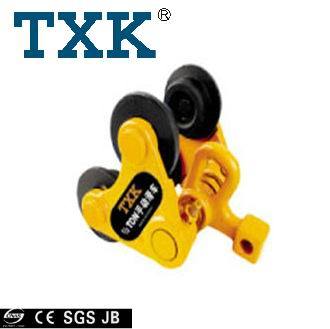

Manual Pulley, manual trolley, hand pulley, hand trolley, plain trolley
Model&co
lon; PC-02
Capacity(ton)&co
lon; 2
Minimum radius of turn(m)&co
lon; 1
Net Weight (kg)&co
lon; 12
Designed to function on both flat and minor irregular beams surface like I-beam and H-beam
Easy installation and on-site operations
Dual tread iron wheels with high quality sealed ball bearing
Heavy rolled steel side plates with a universal hanging eye, can be coupled closely to most hoists.
| Manual Trolley Technical Parameters |
|
| Model | capacity | Unit(mm) | Minimum radius of turn |
| F | G | P | J |
| PC-0.5 | 0.5 | 200 | 130 | 163 | 91 | 0.6 |
|
| PC-01 | 1 | 190 | 135 | 160 | 90 | 0.6 |
|
| PC-02 | 2 | 200 | 170 | 221 | 115 | 1 |
|
| PC-03 | 3 | 218 | 205 | 265 | 138 | 1 |
|
| PC-05 | 5 | 275 | 236 | 305 | 157 | 1.2 |
|
