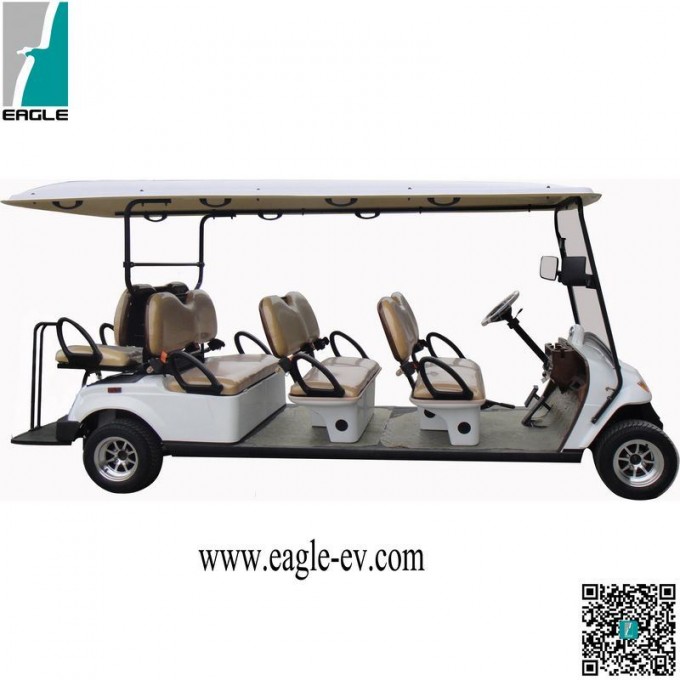

Electric Golf Carts, 8 Seat with Utility Cargo Box, Aluminum Chassis Frame, No Rusts

Electric Golf Carts

Specifications	Model	EG2069KSZ
Key Components	Power Source	Pure Electric
	Electric System	Both AC and DC system are available
	Battery	Trojan battery
	Motor	ADC motor or Chinese Motor from
	Controller	Curtis controller
	Charger	China origin, input 110V-240V~50Hz-60Hz,
Performance	Passenger capacity	6
	Range (loaded) based on flat road at aspeed of 20km/h (km)*	Up to 75
	Max.Speed	Up to 32
	Minimum turning radius (m)	8
	Max.Climbing ability (loaded)	Up to 15%
	Max.Movement after brake at speed of 20km/h	≤4m
	Max.Loading weight	480kgs
Dimensions	Overall dimensions (mm)	4570x1180x1890
	Min.Ground clearance (mm)	120
	Wheelbase (mm)	3200
	Front wheel tread (mm)	875
	Rear wheel tread (mm)	985
Body and frame	frame	Welded steel framework with phosphate+electro-coating treatment
	Body	PP plastic front body +PP plastic rear body
	Roof	Injected plastic
Electric system	Lighting system and horn	Headlights,front turn signals, taillights, with DC-DC converter, horn,reversing alarm
Steering and Suspension	Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
	Brake system	4-wheel hydraulic brake +hand brake
	Suspension system	Front and rear plate spring +cylinder hydraulic shock absorber
	Driving mode	Rear axle two stage deceleration, motor direct driving
	Rear axle	Integrated
	Wheel &Tyre	Alumimum wheel &205/50-10 Tyre
Options	Hinged Windshield
	Stainless steel package
	Meter (available for 48V system)
	2 point seat belt
	Formed seat&backrest vinyl
	Wood finish Package
	Inner &Side rear view mirror
	Solar Panel
	Cooler
	On-body charger
	Right hand drive system
	Enclosure
Body Color	Up to 6kinds of standard color for option
Loading	Both Assembly and Disassembly are available

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.Was founded 1999, and it's aleading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes:Electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc..It has aworkshop area of 20,000 square meters with 2assembly lines inside.Its daily production capacity is 80 units per day;This can be adjusted with the order volume increasing.It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.
