Detailed Description
Quick Details
Seats:3 -4
Fuel Type:Electric
Battery Voltage:48V
Certification:CE
Des
cription:4 seater golf cart
Controller:Curtis Controller, 275A-400A
Battery:Trojan battery, T105 or T875
Motor:3KW-5KW, ADC or Chinese one, DC and AC
Charger:High Frequency o
nboard charger
Max.Speed:40km/h
Range:Up to 100kms
Climbing ability:25%
Chassis:Aluminum beam
Suspension:Front independent suspension
Packaging &Delivery
Specifications
4 seater golf cart
2014 new model
Aluminum f
rame and chassis
Front independent suspension
LED lights
| Model | EG202AK |
| System | 48V/3KW AC |
| Unit Price (FOB Shanghai)(based on FCL) | US$3,620.00 |
| Key Components | |
| Battery | 6PCSxT875(145Ah@5hr rate) |
| Motor | 3KW AC motor |
| Controller | Zapi ACE0 (280A@2minutes) |
| Performance | |
| Passenger capacity | 2 |
| Range (loaded) based on flat road at aspeed of 30km/h (km)* | >70 |
| Max.Speed @12.76:1 gear ratio | 32 |
| Max.Speed @10.26:1 gear ratio | -- |
| Minimum turning radius (m) | 3 |
| Max.Climbing ability (loaded)@ 12.76:1 gear ratio | 25% |
| Max.Climbing ability (loaded)@ 10.26:1 gear ratio | -- |
| Max.Movement after brake at speed of 20km/h | ≤4m |
| Max.Loading weight | 270kgs |
| Net weight | 460kgs |

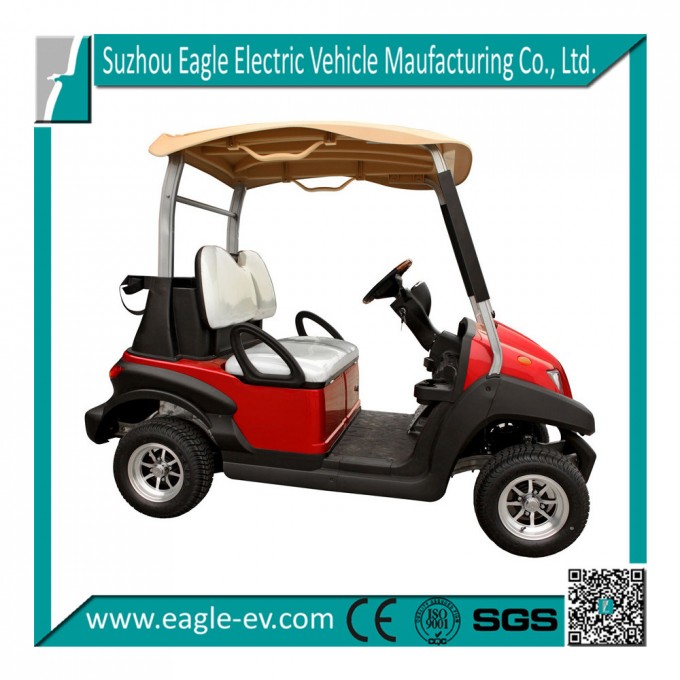

Product Image
