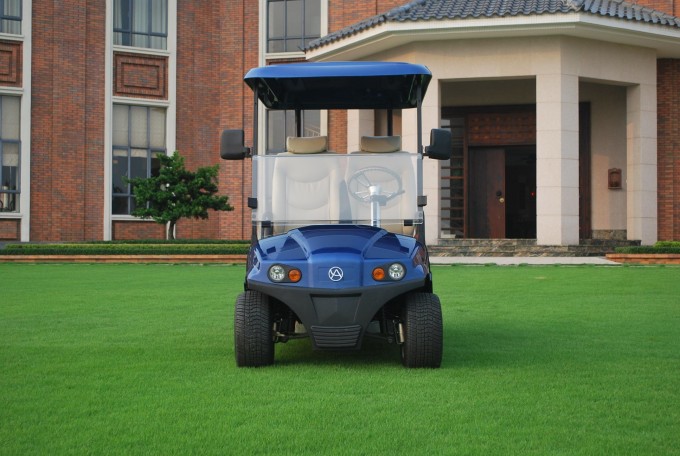

Aluminium Chassis 2 Seater Electric Golf Cart

Aluminium Chassis 2 Seater Electric Golf Cart6M standard in electric field vehicle industry○Longer range
AC system can save 30% electricity,the range ability has increased 30% over traditional electric vehicle
○Better climbing capability
The torque is 1.5 time of tradition imported vehicle,so Ruida electric vehicles have better climbing capability.
○Faster forward speed
Stronger power enables the maximum forward speed to reach 60KM/H.
○Better handing performance
Our independently developed electric control software brings the vehicle performance to the extreme,with elcellent handing and give pleasure to riders.
○Better Safety Performance
Induction type acceleration system delivers stable speed when going up/down slopes, four wheel disc brake, automatic park functions.
○Easier Maintenance
AC motors without graphite brush greatly reduce daily maintenance and replacement of wearing parts.
Product standard configuration

Model RD-2AC+D	Remarks and notes
motor	AC 4kw (with electromagnetic brake)
Controller	USA CURTIS:1234E-5221/AC 275A
Rear axle	CVT rear axle (exclusive imported product)
accelerator	Non-contact angle sensor accelerator (completely sealed/patent product)
Steering system	Dual direction gear, rack steering system (automatic gap compensation function)
Front cushioning	RD double swing arm independent suspension
Rear cushioning	Independent suspension spring hydraulic cushioning (semi-independent suspension)
Vehicle exterior trimming	PP engineering plastic, mold tinting
Meter	Digital Meter, electric meter, speed forward, backward, fast speed, slow speed display
Seat	Low back soft seat
Tire	USA CARLISLE 205/50-10 Tire, better wear resistance
Brake system	Dual security by electric brake and hydraulic disc brake on four wheels,bring safer braking results(automatic parking,patent product)
Vehicle color	Ordinary color, special colors will incur additional charge
Bottom plate	PP battery plastic bottom plate (anti-rust, anti-corrosion)
Chassis	High strength aluminum structural main girder (solid, durable, anti-corrosion)
Electric start lock	imported components
Forward/backward gear switch	imported components
Ground clearance	120 mm
Front/back wheel width	1080 mm front/ 1190 mm back
Wheel base	1650 mm
Minimum turning radius	2.6 m
Highest forward speed	18~40 km/h adjustable, configured for fast and low gear switch
Gradeability	≥40%
Range (flat ground)	100-120 km
Net weight	255 kg
Vehicle dimension (L*W*H)	2400*1190*1820 mm
Tow truck switch	Easier, faster check and repair
Rear view mirror	Rear view mirror
Wheel rim	Steel rim
Wind shiel	One piece

RUIDAEV CORETECHNOLOGIES
OUR COMPANYDongguan Ruida Electric Vehicle Technology Co. Ltd. is ahigh-tech electric vehicle enterprise with independent brand and R&D capability, our company islocated in the manufacturing capital of the world -Dongguan, and is focused on the R&D and application of various types of AC variable frequency electric vehicles.As the first electric vehicle companies that involved in the R&D and promotion of intelligent AC variable frequency, after many years of development, ourcompany has become acomphensive high-tech enterprise integrating R&D, production, sales, project operation and after sale service.

Our company has atechnical team with over 10 years R&D experience in electric vehicle industry, working in tandem with top technical R&D teams from USA,Deutschland, we successfully solved aseries of difficult problems in the application of intelligent AC variable frequency system, and brought forward intelligent ACvariable frequency electric vehicle series product in the industry. From scooter, hunting vehicle, golf cart, truck to sightseeing vehicles, Ruida products have beensold to over 40 countries and regions, and ha ve received deep trust and recognition from customers of all the markets because of their advantage ssuch as:strong power, great climbing capability, long range after asingle charge etc.

As the trailblazer and pilot of intelligent AC variable frequency electric vehicle industry, Ruida will stick to our core concept of" focus, innovation", continuouslyfocus on the R&D and application of intelligent AC variable frequency technology, push for the development and upgrade of electric vehicle industry!
