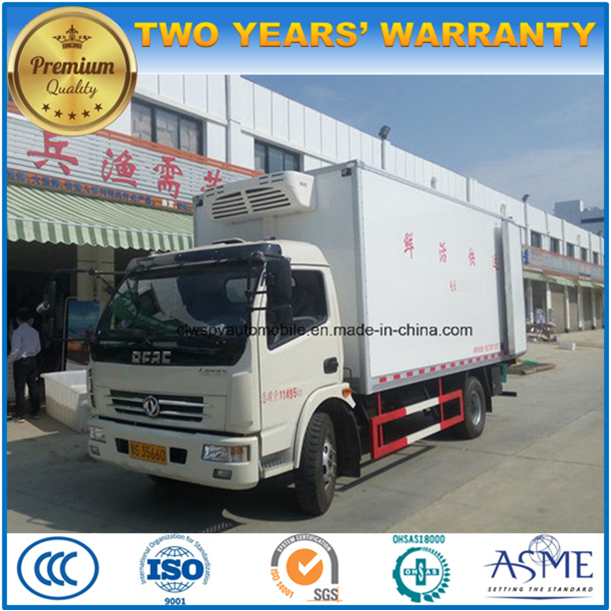

4X2 Live Transport Truck 5 Tons Sea Food Refresh Refrigerated Truck

Live Fish transport / Refrigerated trucks are used to transport frozen or fresh goods of the closed van, is equipped with a refrigeration unit refrigeration and polyurethane insulated car for refrigerated transport vehicles, commonly used in the transport of frozen food (frozen cars), dairy products (Milk truck), vegetables and fruits (fresh truck), vaccine drugs (vaccine carriers) and so on.
* Primary agricultural products: vegetables, fruits; meat, poultry, eggs; aquatic products; flower products.
* Processed foods: frozen food; poultry, meat, aquatic products such as packaging cooked food; ice cream and dairy products; fast food raw materials.
* Specialties: chemical products, medical supplies, biological products and so on.

Construction of refrigerated trucks
Live transfer truck/ Refrigerated trucks made of the special car chassis, thermal insulation envelope (generally composed of polyurethane materials, glass steel, color steel, stainless steel, etc.), refrigeration units, compartment temperature recorder and other components.

Refrigerated truck body production technology
1, fragmented assembly of the "sandwich" board bonding and the insulation performance of refrigerated truck is higher.
2, the film assembled into the foam.
3, the overall skeleton into the foam.
4, vacuum adsorption paste technology.

Optional configurations
1. Customize the fish box accoding to customers' need.
2.Oxygen pump


Basic specification

Left hand drive with deluxe cab
Vehicle model	CLW FT501Q
Chassis model	EQ1090LJ8BD
Overall dimensions	5995×1910×2790 mm
Cargo box dimensions	4100×1740×1750 mm
GVW	4495 kg
Curb weight	1495 kg
Load capacity	5000 kg
Wheel base	3380mm
Axle load	1850/2800 kg
F/R track base	1360/1265 mm
Approach/departure angle	20/14
Max speed	95 km/h
Tire specification	7.00-16;8.25-16
Drive mode	4X2
Engine type	CY4SK251 ,diesel engine
Engine power	110 kW
Emission	3293 L
Engine manufacturer	Dongfeng Chaoyang Engine Co., Ltd
Transmission	MBR-6P, 6-speed
Integrated fuel consumption	11.3 L/100km
Emission standard	Euro 3-5
Configuration	1. The insulation material in the board is made of imported polyurethane, the thickness is 80mm. 2. The inner and outer wall panels are made of high quality 2.2mm FRP (color steel plate, stainless steel, aluminum alloy are optional). 3. The bottom plate is made of aluminum plate or FRP. 4. 2.5mm aluminum alloy package around the cargo box. 5. Stainless steel door frame, hinge, wrap angle, door lock, 4 units of anti-collision rubber and the installation of energy-saving lighting.
Refrigerator	Carrier brands, lowest temperature can be -15C. (Thermo king, Hana and other international brands are optional)
Warranty	24 months, from the date of supply

Refrigerated truck &factory show














Q&A

1.Q:Are you amanufacturer or trading company? A:We are manufacturer. You are welcomed to visit our factory. Factory Address: Chengli Automobile Industrial Park, South Suburb, Suizhou, Hubei, China

2.Q:What kind of payment do you accept? A:We accept T/T and L/C usually. If you want to use others payment, contact us for /confirm/iation.

3.Q:Can you customize trucks according to customers' need? A:Yes,product customization service is our speciality.

4.Q:What's your after-sale service? A:We provide technical support for our products. Besides, we also providespare parts as long as customers need.

5.Q:What's your delivery time? A:It depends on the quantity, usually takes 10-15

Chengli automobile co.,Ltd covers an area of about67 hectares, more than8000 employees,production and sales of various special vehicles more than 300 kinds.
Our company is keeping growing during15 years. Our sales revenue reached 400 million dollars and exports reached 20 million dollars in 2016.
Our leading varieties includerefuel tank truck, LPG tanker,sprinkler, tank truck, garbage truck, suction truck, sewage suction truck, dump truck, van,
trailer, wrecker, truck cranes, aerial vehicles, coach cars, bulk cement truck, chemical trucks, fire truck, cement mixer, tractor special van, feed truck,
LED advertising vehicle, the American school bus and Recreational Vehicle,etc.

We have got five first in the field of special automobile:
1.Sanitation car sales ranked first in the country;
2.Special vehicle production and sales ranked first in the country;
3.The first private enterprise pass the test of the A2, C2 three types of pssure vessel by once;
4.The first private enterprise through the enterprise qualification approval of low-speed truck test by once;
5.The first private enterprise through the new national standard of fire acceptance.


Any interest of road sweeper truck, pls contact us .
Tel /: +86 186 7222 2184
