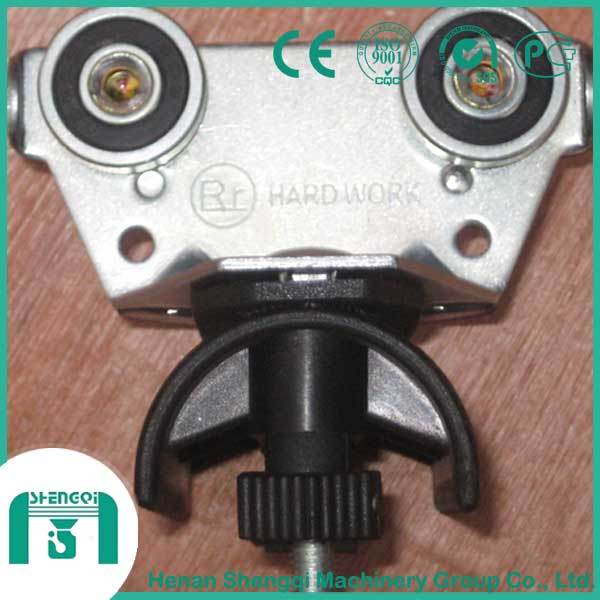

C Track Festoon System Crane Cable Trolley

C Track Festoon System Crane Cable Trolley
This series of I beam trolleys and components integrating our worldwide job proven flat cable provides a safe, efficient and maintenance free method of mobile electrification. The minimum bending radius permissible for lat cable is 5 times the thickness of the cable, thus allowing a considerably smaller bend radius compared to round cable of equal conductor size.

Application
C Track Festoon System Crane Cable Trolley
Crane manufacturing, hoist units, transport systems, special engineering, stacking systems, conveyor system, etc. C-rails are available in zinc-coated and stainless steel version (program 230 to 240). Special versions are available for explosion-proof areas.
C Track Festoon System Crane Cable Trolley

Wheels	Ball bearings, hardened, galvanized Temperature resistance: -30C to +120C
	Travelling speed: ca. 300 m/min.
Material	Carrier body: steel, galvanized Support saddle: steel, galvanized Bumper: Neopne
	Dowel: steel, galvanized Hardware: galvanized
	Temperature resistance: -30°C to +120°C
Max. cable load	max.50KG	max.60KG	max.70KG
Dim. of Cable (mm)	max.75 Wx32δ	max.120 Wx60δ	max.150 Wx70δ
Weight(kg)	1.9	2.4	2.5
