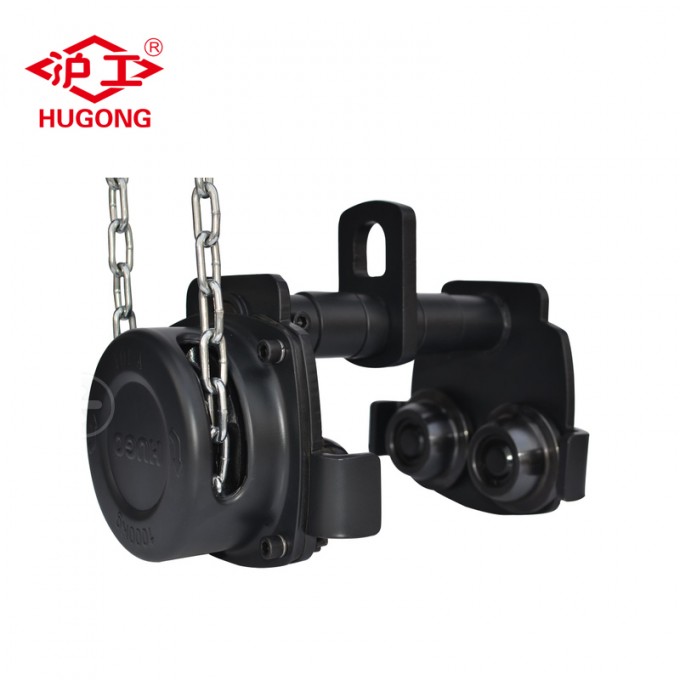

Manual Plain/Geard Trolley, Beam Trolley
Details for the beam trolley:
1. Adjustable to any beam width, simply by adjusting the number of collars.
2. The wheels are made to fit any shape of beam
3. High grade sealed ball bearings.
4. With anti-drop plates.
5. For gear trolley, the standard operating length is 3m, other length is available upon request.
Specification for beam trolley
| The Parameters ofSeries of Series of Manual Hoist Trolley with Chain 1T 2T 3T 4T | |||||||||
| Model | Rated load(T) | Test(KG) | The Min curvature radius(M) | Main Size(MM) | I-Beam recommended(MM) | ||||
| A | B | C | H | F | |||||
| GCL-JA0.5 | 0.5 | 0.64 | 1 | 208 | 172 | 190 | 108 | 3 | 75-100 |
| GCL-JA1 | 1 | 14.71 | 1 | 220 | 206 | 222 | 122 | 3 | 75-100 |
| GCL-JA2 | 2 | 29.42 | 1.1 | 260 | 240 | 267 | 132 | 3 | 90-140 |
| GCL-JA3 | 3 | 44.13 | 1.3 | 285 | 279 | 319 | 181 | 3 | 100-150 |
| GCL-JA5 | 5 | 61.29 | 1.4 | 338 | 318 | 384 | 219 | 3 | 125-175 |
| GCL-JA10 | 10 | 122.58 | 1.7 | 362 | 380 | 490 | 275 | 3 | 125-180 |
